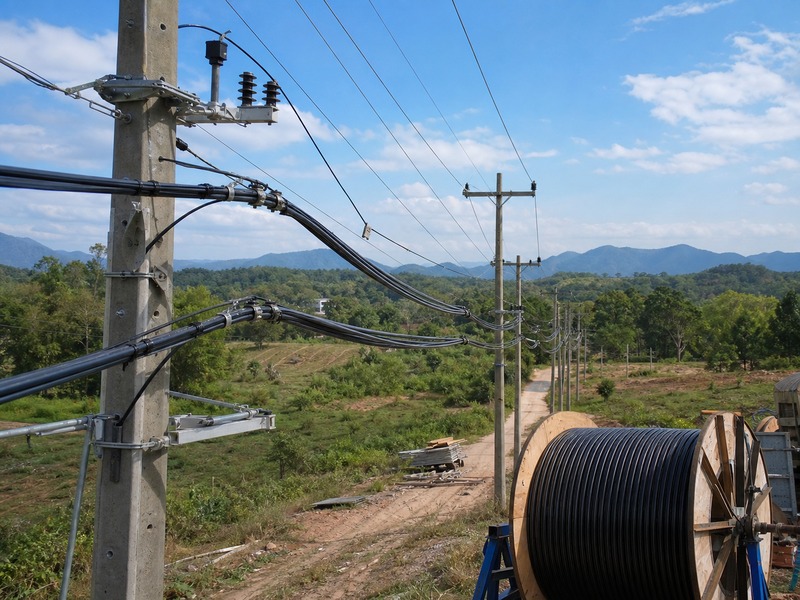

ABC cable size selection for rural distribution projects should start with load current, 路線の長さ, 電圧降下, span condition, neutral messenger design, service connection plan, and the local utility standard. A common size list is not enough. A 4×25 mm2 low-voltage aerial bundled cable, a 3×70+54.6 mm2 service distribution design, and a medium-voltage overhead insulated cable serve different route duties.
From XWA Cable’s engineering and factory view, the cable size must match both electrical and mechanical conditions. の ABCケーブル product page gives the product range. This article explains how XWA reviews project data before recommending conductor size, コア配置, メッセンジャーのデザイン, 絶縁, packing length, and testing documents for rural distribution lines.
The Route Duty Comes Before The Size Table
Rural distribution routes usually contain several cable duties. A main feeder from a transformer, a branch line to a village, a short service drop, and a street-lighting circuit do not carry the same current or face the same span condition. The first engineering step is to define the duty of each line section.
ABC cable is often selected where insulated overhead conductors reduce contact risk, improve route organization, and simplify low-voltage distribution in populated or semi-rural areas. The product still needs correct sizing. Insulation does not solve voltage drop, overload, poor span design, or weak service-connection planning.
| Route Section | Main Design Driver | Size Selection Impact |
|---|---|---|
| Transformer to village feeder | Load current and voltage drop | Larger phase conductors and clear neutral design |
| Branch distribution line | Moderate current and many service points | Core arrangement and service plan matter |
| Individual service drop | Short length and building connection | Smaller section may fit if current and mechanical limits allow |
| Street-lighting route | Dedicated lighting core and switching control | Suitable auxiliary core or separated circuit |
| Long rural span | Mechanical tension and sag | Messenger construction and span data become critical |
Load Current Defines The First Electrical Boundary
The conductor size must carry the expected load current under the installation condition. A rural network may include residential loads, small workshops, water pumps, public lighting, telecom loads, and future service connections. The design current should come from transformer capacity, demand calculation, or utility planning data.
Factory sizing cannot rely on the phrase “standard ABC cable.” XWA needs the current per phase, システム電圧, 位相配置, service type, そして路線の長さ. If the load is unclear, the quotation can list a cable construction, but it cannot prove that the line will maintain performance after installation.
Voltage Drop Often Controls Rural Distribution Size
Voltage drop becomes a major issue on long low-voltage overhead routes. Even when a conductor can carry the current thermally, the voltage at the end of the line may fall below the project limit. Long routes, small conductors, high load current, and high conductor temperature all increase voltage drop.
XWA treats voltage drop as a system-design input. Cable production data can support the calculation through conductor material, 公称面積, and electrical resistance. The route designer still needs load current, 路線の長さ, power factor, allowable voltage-drop limit, and conductor operating condition.
| Voltage-Drop Factor | What It Changes | Engineering Response |
|---|---|---|
| Long route length | Higher total conductor impedance | Use larger conductor or adjust transformer layout |
| Higher load current | Larger voltage drop under peak demand | Review load forecast and phase balance |
| Small conductor section | Higher resistance | Increase conductor size if route economics allow |
| High conductor temperature | Higher resistance during operation | Use realistic thermal assumptions |
| Poor phase balance | Neutral loading and uneven voltage | Review service distribution and phase allocation |
Neutral Messenger Design Affects Mechanical Performance
Many low-voltage ABC designs use a neutral messenger that supports mechanical tension. The messenger can be bare or insulated depending on the standard and utility specification. Its material, サイズ, and rated tensile strength affect span length, たるみ, pole hardware, and service reliability.
The messenger is not simply an extra conductor. It can carry electrical duty and mechanical duty at the same time. If the route includes long spans, slopes, wind exposure, or many service drops, the messenger design needs careful review. XWA checks the requested construction against the standard, conductor arrangement, and packing requirement before production.
Core Arrangement Must Match The Distribution System

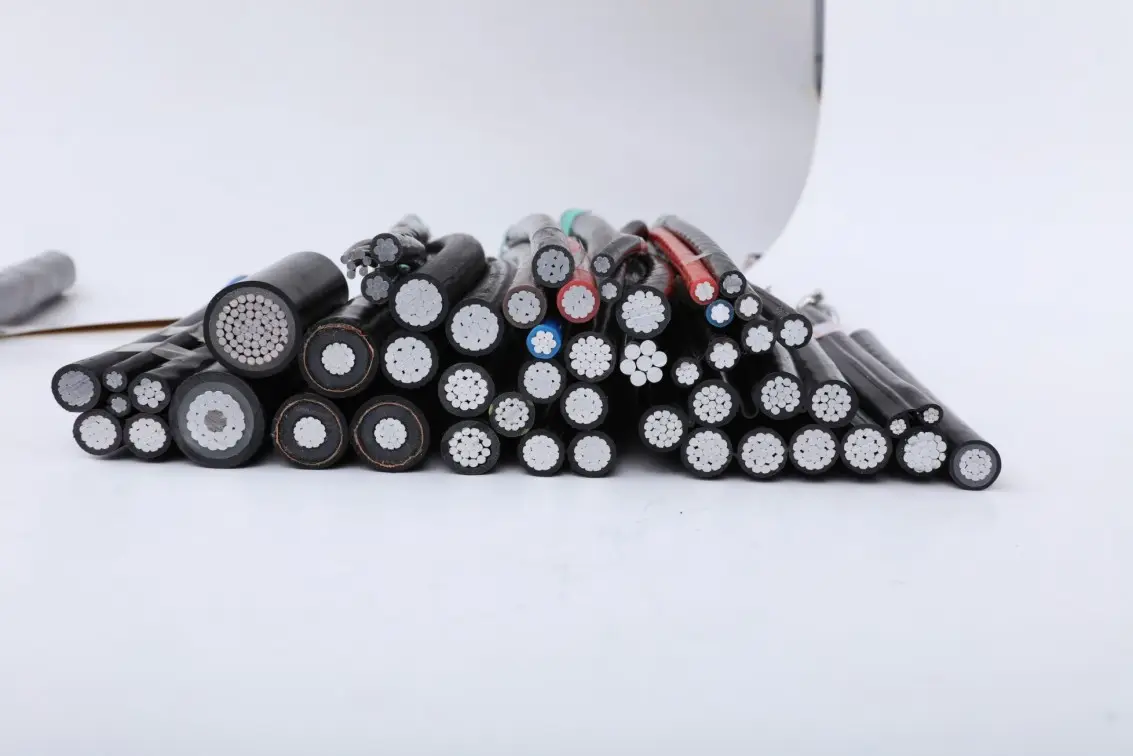

ABC cable core arrangement depends on phase system, neutral design, and auxiliary functions. Common low-voltage constructions can include two-core, three-core, four-core, or phase-plus-neutral messenger designs. Some networks add a lighting core. Other projects use separate circuits to keep the main distribution cable simpler.
The core count should follow the network design rather than a generic model name. A single-phase service route, a three-phase feeder, and a mixed village distribution route need different cable arrangements. The route drawing should define phase conductors, neutral or messenger, service tapping method, and any auxiliary core.
| Common Design Detail | なぜそれが重要なのか | Data XWA Needs |
|---|---|---|
| Number of phases | Defines phase conductor quantity | Single-phase, three-phase, or mixed service plan |
| Neutral messenger | Affects electrical and mechanical design | 材料, サイズ, 絶縁, tensile requirement |
| Street-lighting core | Adds a separate service function | Core size, 絶縁, and switching plan |
| Service connections | Affects tapping frequency and load balance | Connection count and approximate load plan |
| Local utility standard | Controls construction and marking | 標準, 描画, またはユーティリティ仕様 |
Span, Sag, And Pole Hardware Limit The Practical Size
A larger conductor can reduce voltage drop, but it also changes cable weight, 直径, たるみ, and hardware loading. Rural routes may use timber poles, concrete poles, steel poles, or existing structures. Span length, pole strength, terrain, wind, ice, and service drop loading all affect the final cable design.
ABC cable selection must therefore balance electrical performance and mechanical installation. A size increase that looks attractive electrically can create new installation limits. XWA can provide construction data, 直径, approximate weight, and packing details. The line designer should review sag, 張力, clamps, hooks, suspension fittings, and dead-end hardware against the route design.
Aluminum Conductor And Insulation Need A Standard
Many ABC cables use aluminum conductors because weight and cost matter in overhead distribution. Aluminum conductor selection still needs a clear standard, conductor class, 絶縁タイプ, and construction. Some markets use compacted conductors. Others define specific messenger alloys or service-drop constructions.
ABC cable insulation normally faces sunlight, temperature change, 水分, 摩耗, and contact with vegetation or hardware. XLPE or PE-based insulation may be specified depending on voltage class and market practice. 耐紫外線性, tracking resistance, 色, and marking may also appear in utility specifications.
Standards And Utility Drawings Control The Final Size Code
ABC cable size names can look similar across markets, but the construction may differ. One utility may define compacted aluminum phase conductors, an insulated neutral messenger, and a lighting core. Another may define a bare messenger, different insulation thickness, or a different marking rule. The size code must therefore stay tied to the standard or approved drawing.
XWA does not treat a size such as 3×70+54.6 mm2 as a complete specification by itself. The production file still needs conductor material, conductor class, messenger material, insulation compound, 定格電圧, test method, マーキング, and packing. This prevents a quotation from matching the visible size but missing the required construction.
When ABC Cable Is Not The Right Answer
ABC cable is useful in many rural and semi-rural networks, but it is not universal. Very long high-load low-voltage routes may need a different transformer layout or a medium-voltage extension. Severe mechanical routes may need stronger overhead conductor planning. Areas with strict undergrounding requirements may need low-voltage power cable instead of overhead cable.
In some projects, bare overhead conductor, covered conductor, spacer cable, or underground cable may fit better. の 架空ケーブル product page gives broader route options. XWA reviews the project environment before treating ABC cable as the final construction.
Factory Review Before ABC Cable Production
XWA converts the project requirement into a production file before manufacturing. The file defines conductor material, phase size, messenger size, 断熱材, 電圧指定, 標準, コア配置, マーキング, packing length, そしてテスト要件. This keeps production aligned with the approved technical data.
Quality review can include conductor resistance, conductor construction, 断熱材の厚さ, surface condition, マーキング, core identification, messenger construction, 直径, ドラムの長さ, and visual inspection. Test and inspection records should link to the produced cable and drum numbers.
Drum Length And Packing Also Affect Rural Installation
Rural distribution work often covers long routes with limited lifting equipment. ドラムの長さ, drum weight, ケーブル直径, and unloading method can affect installation speed. Very short drum lengths create more joints and handling work. Very long drum lengths may increase drum weight beyond the available equipment on site.
XWA reviews drum length with the cable size because conductor section, コア数, and messenger design all change the final cable diameter and weight. Export packing can use wooden drums or steel-wood drums according to cable size, 路線の長さ, and shipment method. Drum marking should match the cable code, 長さ, 電圧, 標準, and destination requirement.
Common Specification Gaps XWA Reviews Early
| Gap | Possible Result | XWA Review Point |
|---|---|---|
| Only a common size is listed | Construction may not match the utility standard | Define standard, 描画, 導体, 絶縁, and messenger |
| No voltage-drop limit is provided | The route may pass current but deliver poor end voltage | Use route length, load, and resistance data for design review |
| Messenger design is unclear | Sag, 張力, and fittings may not match the route | Define messenger size, material, 絶縁, and tensile duty |
| Lighting core is missing from the drawing | Field modification may be required | Define auxiliary circuit need before production |
| Drum length is not planned | More joints, handling issues, or logistics mismatch | Set practical drum length and packing before shipment |
Project Data XWA Needs For ABC Cable Configuration
| Project Data | なぜそれが重要なのか | Example Detail |
|---|---|---|
| システム電圧 | Defines insulation and cable type | 0.6/1 kV or medium-voltage overhead insulated design |
| Load current or transformer capacity | Starts conductor size review | Peak current per phase or transformer rating |
| Route length | Controls voltage-drop calculation | Distance from transformer to service area |
| Typical span | Controls messenger and hardware review | Pole spacing, terrain, wind, and ice condition |
| コア配置 | Defines production construction | Phase conductors, neutral messenger, lighting core |
| 標準 | Controls dimensions, テスト, そしてマーキング | Utility drawing or national standard |
| ドラムの長さ | Affects installation joints and logistics | Required meters per drum |
| Destination and packing | Supports export protection and documents | 木製ドラム, steel-wood drum, marks, port |
How This Article Supports ABC Product Selection
This article does not replace a product specification. It explains how route data affects size selection. The product page defines available ABC cable constructions. The project data defines which construction fits the rural distribution route.
For comparison context, 地方電化プロジェクトにおけるABCケーブルと裸導体 explains when an insulated overhead bundle is compared with bare conductor systems. Together, these pages support the ABC Cable product hub without using the blog as a duplicate product page.
よくある質問
What is the first factor in ABC cable size selection?
The first factor is the route duty. 負荷電流, 路線の長さ, システム電圧, voltage-drop limit, and phase arrangement define the electrical boundary. Span condition and messenger design then define the mechanical boundary.
Can the same ABC cable size work for every rural route?
いいえ. Rural routes can include feeders, branches, service drops, and lighting circuits. Each section may need a different conductor size, コア配置, or messenger design. Route length and load balance often change the result.
Does a larger ABC cable size always improve the project?
A larger conductor can reduce voltage drop and support higher current. It also increases weight, 直径, 曲げ半径, hardware load, そして設置費用. The better size balances electrical performance with mechanical installation limits.
Why does the neutral messenger need attention?
The neutral messenger can carry both electrical and mechanical duty. Its material, サイズ, 絶縁, and tensile strength affect span length, たるみ, fittings, and service reliability. It should match the route and utility standard.
What information does XWA need before preparing ABC cable configuration?
XWA needs system voltage, 負荷電流, 路線の長さ, typical span, pole condition, 位相配置, neutral messenger design, 標準, ドラムの長さ, 梱包方法, and destination information.
Engineering Conclusion
ABC cable size selection for rural distribution depends on load, 電圧降下, 路線の長さ, スパン, メッセンジャーのデザイン, service connections, そしてプロジェクト標準. A size table is useful only after the route duty is clear.
XWA Cable reviews the electrical and mechanical data before preparing ABC cable construction, ドラムの長さ, マーキング, パッキング, およびテストドキュメント. Clear route and load information helps the factory supply cable that matches the actual rural distribution project.
