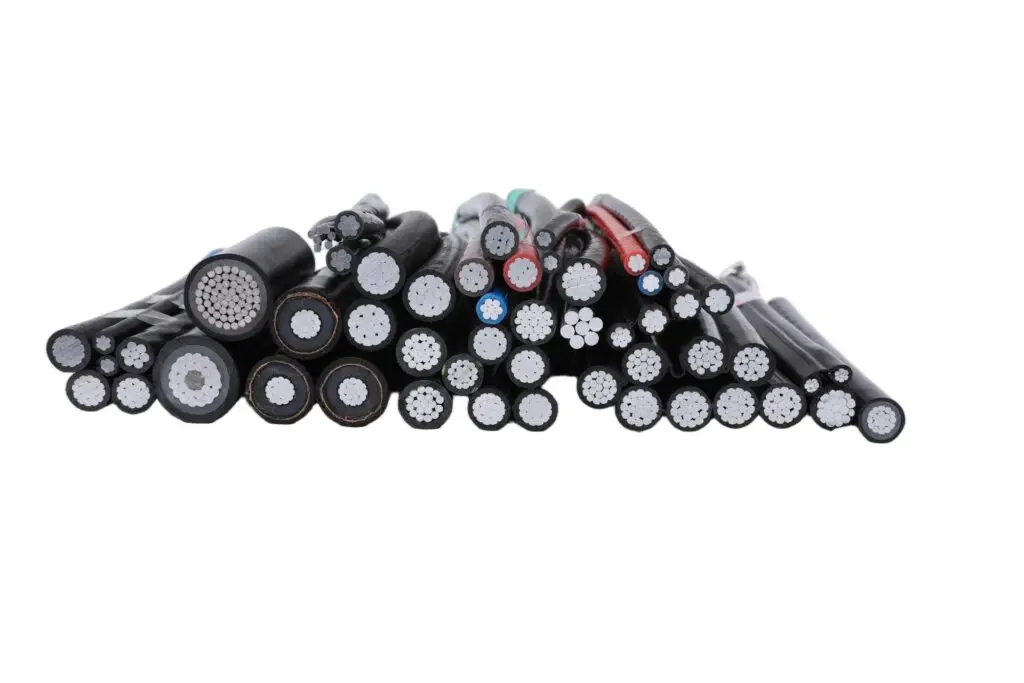

ABC Cable: Premium Solutions for Every Application
Aerial Bundled Cable (ABC Cable) is a widely used overhead power line solution that replaces traditional bare conductors. It features individually insulated aluminum phase conductors bundled securely around a neutral messenger wire.
This insulated design drastically reduces the risk of electrical faults from tree branches or extreme weather, significantly lowers maintenance costs, and maximizes safety in both congested urban grids and remote rural electrification projects.
As a primary manufacturer, XWA engineers and supplies a complete portfolio of Aerial Bundled Cables tailored to international utility specifications (including IEC, NFC, and ASTM standards). Whether you are sourcing for a local distribution network or a major public tender, our production lines deliver:

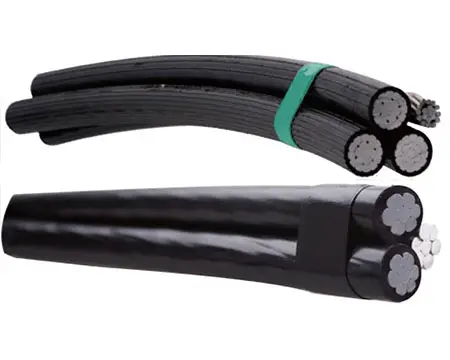

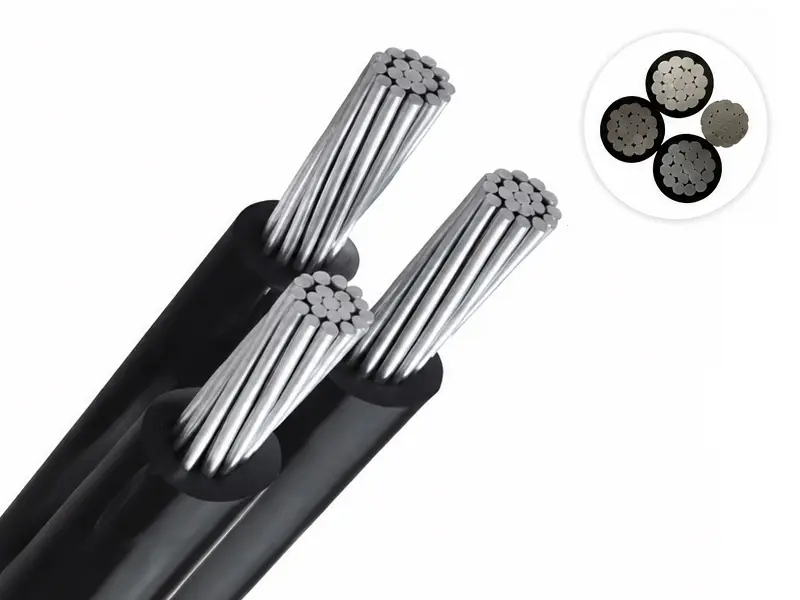

Low Voltage ABC Cable (0.6/1 kV)
Ideal for secondary distribution networks, featuring robust AL/XLPE/HDPE construction.
High Quality Aluminum
Global Standards

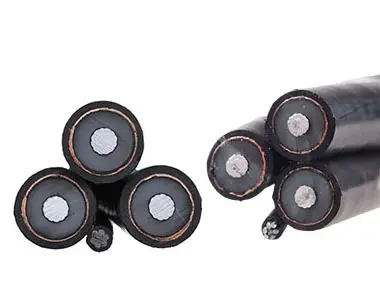

Medium Voltage ABC (6kV/11 kV)
AL/XLPE/CTS/HDPE Engineered for primary distribution with superior insulation and mechanical strength.
High Quality Aluminum
Global Standards

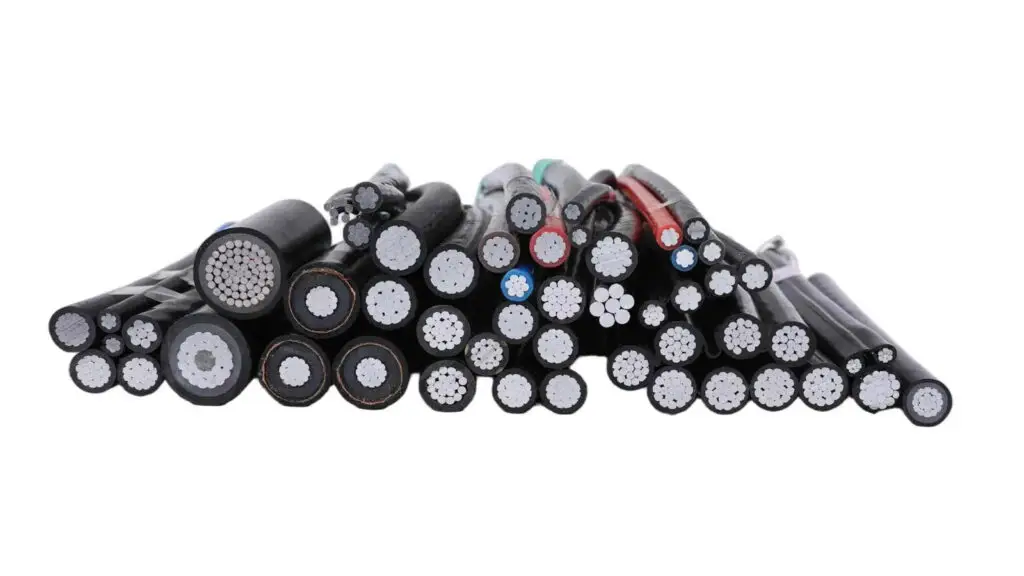

Comprehensive Sizing 3&4 Conductors
Full manufacturing capabilities for various cross-sections, including 2×16, 2×25, 3×50+1×35, etc.
High Quality Aluminum
Global Standards
Technical Specifications & Manufacturing Standards
XWA manufactures a full range of Aerial Bundled Cables in accordance with both IEC 60502-1 and NF C 33-209 standards.
Our IEC 60502-1 ABC cables are designed for low-voltage overhead power distribution networks worldwide, providing reliable insulation, mechanical strength, and long-term performance in utility and infrastructure projects.
We also produce NFC 33-209 ABC cables, one of the most widely specified standards for overhead distribution systems in Latin America, Africa, the Middle East, and other international markets, offering excellent durability and performance under demanding environmental conditions.
| Number of Conductor Cross-Section | Insulated Wires | Messenger | Finished Cable | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Distribution Line | Street Lighting | Diameter of Messenger Wire | Min. Tensile Strength | Resistance of 20°C | App. Max Bundle Diameter | App. Net Weight | |||||
| Number & Cross-section | Diameter of Wires | Resistance of 20°C | Current Carrying Capacity 30°C | Number & Cross-section | Current Carrying Capacity | ||||||
| mm² | mm² | mm | ohm/km | A | mm² | A | mm | KN | ohm/km | mm | kg/km |
| 2x16 | 2x16 | 4.6 | 1.91 | 93 | - | - | - | - | - | 15 | 132 |
| 2x25 | 2x25 | 5.9 | 1.2 | 122 | - | - | - | - | - | 18.5 | 200 |
| 2x35 | 2x35 | 6.9 | 0.868 | 129 | - | - | - | - | - | 22 | 280 |
| 4x35 | 4x35 | 6.9 | 0.868 | 131 | - | - | - | - | - | 26 | 550 |
| 3x25+54.6 | 3x25 | 5.9 | 1.2 | 112 | - | - | 9.6 | 16 | 0.63 | 30 | 470 |
| 3x25+1x16+54.6 | 3x25 | 5.9 | 1.2 | 112 | 1x16 | 60 | 9.6 | 16 | 0.63 | 30 | 570 |
| 3x35+54.6 | 3x35 | 6.9 | 0.868 | 138 | - | - | 9.6 | 16 | 0.63 | 33 | 580 |
| 3x35+2x16+54.6 | 3x35 | 6.9 | 0.868 | 138 | 2x16 | 9.6 | 16 | 0.63 | 33 | 750 | |
| 3x50+54.6 | 3x50 | 8.1 | 0.641 | 168 | - | - | 9.6 | 16 | 0.63 | 36 | 720 |
| 3x50+1x16+54.6 | 3*50 | 8.1 | 0.641 | 168 | 1x16 | 60 | 9.6 | 16 | 0.63 | 36 | 820 |
| 3x70+54.6 | 3x70 | 9.7 | 0.443 | 213 | - | - | 9.6 | 16 | 0.63 | 38 | 930 |
| 3x70+1x16+54.6 | 3x70 | 9.7 | 0.443 | 213 | 1x16 | 60 | 9.6 | 16 | 0.63 | 38 | 1030 |
Standard and custom conductor sizes, messenger configurations, and alloy options are available to meet specific project requirements.
Applications and Use Cases
XWA Aerial Bundled Cables are engineered to deliver reliable power across diverse and challenging environments.

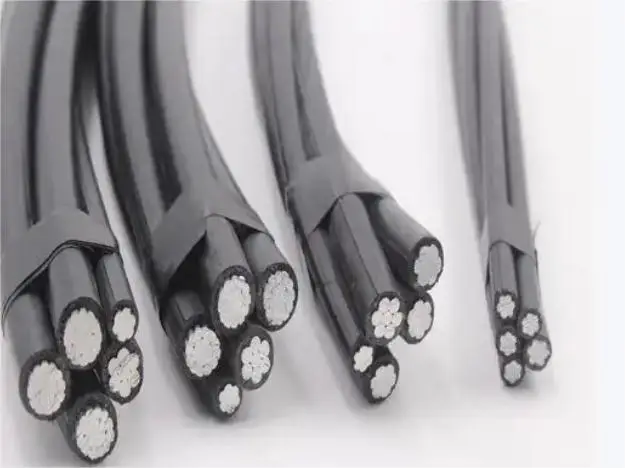

Urban Power Distribution Networks
In densely populated urban environments, safety is the top priority. ABC cables significantly reduce the risk of accidental electrocution and phase-to-phase faults compared to traditional lines. They require a narrower right-of-way, minimize tree-trimming maintenance costs, and offer a much cleaner aesthetic for city infrastructure.
Rural Electrification Projects
Extending the grid to remote communities requires cost-effective and durable solutions. ABC cables provide straightforward installation over challenging terrains—from coastal regions to mountainous areas—without the high costs of underground trenching.
Industrial Complexes & Manufacturing
Heavy-duty manufacturing facilities require stable, high-current capacity. Our cables offer exceptional reliability for continuous operations, featuring robust insulation that resists chemical contamination and environmental wear common in industrial zones.
Renewable Energy Installations
As the global transition to green energy accelerates, XWA ABC cables provide vital infrastructure for the renewable sector. They are heavily utilized for solar farm internal cabling, wind turbine interconnections, and modern microgrid distribution networks.
ABC Cable vs. Bare Conductor: A Technical Comparison
When upgrading or designing overhead power lines, engineers must choose between insulated bundled cables and traditional bare conductors.
It is important to note that most conventional overhead products (such as standard ACSR or AAC) are simply bare aluminum conductors with zero insulation. While bare conductors are highly cost-effective for long-distance transmission, they leave live parts exposed.
XWA’s ABC cables wrap each phase conductor in advanced XLPE insulation. Here is how they compare:
ABC Cable vs. Bare Conductor
| Feature | XWA Aerial Bundled Cable (ABC) | Traditional Bare Conductor (ACSR/AAC) |
|---|---|---|
| Safety Profile | High – Fully insulated conductors prevent accidental contact. | Low – Exposed live parts risk faults from wildlife or weather. |
| Weather & Tree Faults | Excellent – Highly resistant to wind clashing and falling branches. | Moderate – Prone to short circuits from debris and wind. |
| Maintenance Needs | Low – Drastically reduces required tree-trimming and line repairs. | High – Requires constant clearance maintenance. |
| Space Requirements | Minimal – Bundled design requires a much smaller right-of-way. | Significant – Requires wide spacing between phases. |
| Lifecycle ROI | High – Higher initial investment offset by lower maintenance costs. | Moderate – Lower upfront cost, but higher lifetime maintenance. |
Industry Compliance and Certifications
XWA maintains unwavering commitment to international quality and safety standards. Our ABC cables hold certifications from major global testing organizations.
- ISO 9001: Quality management systems
- ISO 14001: Environmental management systems
- IEC Standards: International Electrotechnical Commission compliance
- ASTM Standards: American Society for Testing and Materials requirements
- Local Authority Approvals: Regional electrical safety certifications
Quality Assurance Process of ABC Cable

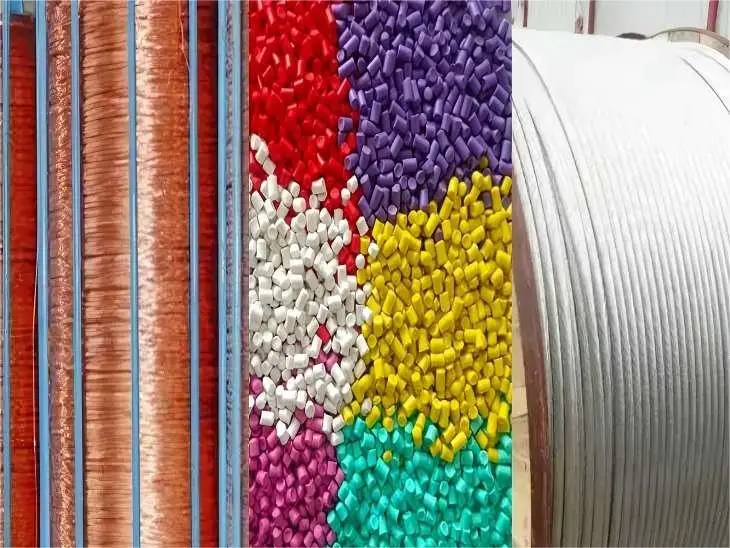

Raw Material Inspection
- Conductor alloy composition verification
- Insulation material quality testing
- Dimensional accuracy checks
Production Process Controls
- ABC cable continuous monitoring during manufacturing
- In-process quality checkpoints
- Statistical process control
Final Product Testing
- ABC cable electrical performance verification
- Mechanical strength testing
- Environmental resistance evaluation
- Dimensional compliance verification
AAC/AAAC Cable
All Aluminum Alloy Conductor - AAC/AAAC overhead cables are lightweight, cost-effective, and widely used for short-distance power distribution in urban, rural, and residential areas.
ACSR Conductor Cable
Aluminum Conductor Steel Reinforced - ACSR overhead cables combine high aluminum conductivity with high steel strength, ideal for long-distance, high-voltage, and large-span overhead transmission lines.
ACAR Conductor Cable
ACAR (Aluminum Conductor, Aluminum Alloy Reinforced) conductors are engineered for high-efficiency overhead power transmission and distribution in low & medium voltage networks, combining the high conductivity of aluminum with the superior strength of aluminum alloy cores for optimal performance.
The right cable, right on time.
We’re ready to match your project with the perfect solution.
Cable Technical Support Services
- System Design Consultation: Assistance with optimal cable selection and configuration
- Installation Guidance: Best practices and installation support
- Commissioning Support: On-site assistance during startup
- Training Programs: Comprehensive installation and maintenance training
Custom Solutions Development
- Custom conductor configurations
- Specialized insulation options
- The precise voltage ratings
- Tailored mechanical specifications
- Application-specific enhancements

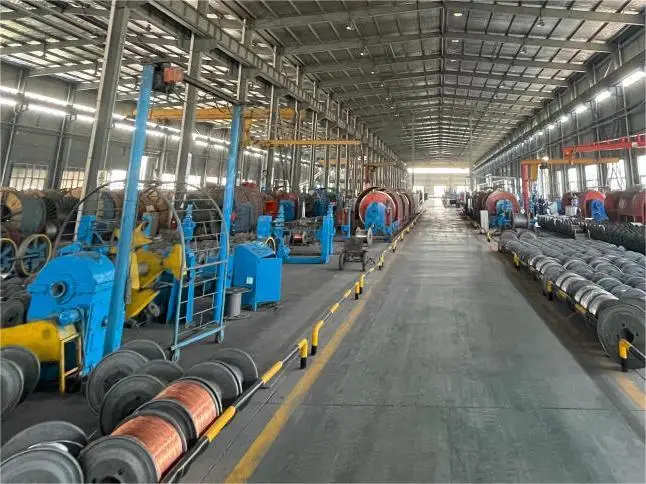

Project Collaboration
1. Needs Assessment: Understanding your specific requirements and constraints
2. Solution Design: Developing optimal technical solutions
3. Product Supply: Reliable delivery of quality products
4. Implementation Support: Assistance throughout installation
5. Post-Installation Support: Ongoing technical assistance
Frequently Asked Questions for ABC Cable
What is an ABC (Aerial Bundled Cable)?
ABC (Aerial Bundled Cable) is an overhead power distribution cable consisting of insulated aluminum conductors bundled together around a neutral or messenger conductor. They are widely used in urban, suburban, rural, and industrial power distribution networks.
What are the advantages of ABC cable over bare overhead conductors?
ABC cables provide several important benefits:
- Improved electrical safety through insulated conductors
- Reduced risk of short circuits caused by tree branches or animals
- Lower maintenance costs
- Better resistance to wind, rain, and pollution
- Smaller right-of-way requirements
- Faster installation
- Improved reliability of the distribution network
- Better appearance in residential and commercial areas
Which standards are most commonly used for ABC cables?
The most commonly specified standards include:
- IEC 60502-1 – International standard widely used worldwide
- NF C 33-209 – Popular in Latin America, Africa, and many international utility projects
- BS 7870-5 – Common in the UK and Commonwealth markets
- Utility specifications such as DEWA, SEC, Eskom, and TNB for regional projects
Different countries and utilities may specify different standards depending on local regulations.
What are the most common ABC cable sizes?
Some of the most frequently requested low-voltage ABC cable configurations include:
- 2 × 16 mm² ABC Cable, 2 × 25 mm² ABC Cable, 2 × 35 mm² ABC Cable
- 3 × 25 + 54.6 mm², 3 × 35 + 54.6 mm², 3 × 50 + 54.6 mm², 3 × 70 + 54.6 mm², 3 × 95 + 70 mm², 3 × 120 + 70 mm²
- 4 × 16 mm², 4 × 25 mm², 4 × 35 mm², 4 × 50 mm², 4 × 70 mm², 4 × 95 mm², 4 × 120 mm²
How do I choose the correct ABC cable specification for my project?
Selecting the right ABC cable depends on several factors, including:
- System voltage
- Load current
- Installation span length
- Voltage drop requirements
- Short-circuit rating
- Local utility standards
- Ambient temperature
- Installation environment
- Mechanical loading
- Future capacity expansion
Providing your project drawings or electrical load information allows manufacturers to recommend the most suitable cable.
What conductor materials are available for ABC cables?
ABC cables are typically manufactured using:
Aluminum conductor (AAC)
Aluminum alloy conductor (AAAC)
Aluminum conductor steel reinforced (ACSR) messenger, where required
The choice depends on mechanical strength, conductivity, local standards, and utility requirements.
What insulation materials are used in ABC cables?
Most ABC cables use:
XLPE (Cross-linked Polyethylene)
PE (Polyethylene)
XLPE is the preferred insulation because it offers higher operating temperatures, better mechanical strength, and longer service life.
What voltage ratings are available for ABC cables?
Common voltage ratings include:
0.6/1 kV (most common), 6/10 kV, 8.7/15 kV, 12/20 kV, 18/30 kV, 19/33 kV
Low-voltage ABC is the most widely used for public distribution networks.
Where are ABC cables commonly used?
ABC cables are widely installed in:
- Residential power distribution
- Urban distribution networks
- Rural electrification
- Industrial parks
- Commercial developments
- Street lighting systems
- Temporary construction power
- Utility network upgrades
How long do ABC cables typically last?
When properly installed and operated under normal environmental conditions, high-quality XLPE insulated ABC cables typically provide a service life of 30 to 40 years, with many utility networks achieving even longer operational performance through proper maintenance.
