MV Power Cable for 6kV to 35kV Distribution Projects
MV power cable covers common IEC-rated cables from 3.6/6(7.2)kV to 18/30(36)kV, together with regional and project-specific 35kV-class constructions for distribution, industrial and renewable energy systems.
XWA MV Power Cable
As a medium voltage cable manufacturer, XWA supplies 6kV to 35kV cable constructions for distribution networks, substations, industrial plants and renewable energy collection systems, with copper or aluminum conductors, screened insulation systems, armoring options and sheath materials matched to project specifications.
XWA’s engineering team develops each MV cable construction according to the rated voltage, conductor size, core arrangement, screen design, armoring requirement, water-blocking condition and installation environment for underground, duct, tray and direct-burial routes.
MV Cable by IEC Voltage Rating
XWA organizes this product group around IEC U0/U(Um) voltage designations and the common market names used for distribution, substation and industrial power systems.
North American MV Cable
North American medium voltage cable classes are normally named by nominal system voltage, while IEC cable pages use U0/U(Um) designations. XWA separates these terms so voltage selection, standards discussion and cable construction remain clear.
5kV, 15kV, 25kV and 35kV Classes
North American MV Cable covers nominal voltage classes used in utility, industrial, renewable energy and feeder systems.
Different Naming Basis
IEC pages use U0/U(Um), such as 8.7/15(17.5)kV, while North American schedules commonly use 5kV, 15kV, 25kV or 35kV class names.
Project Specification Review
XWA reviews conductor, insulation level, shield system, jacket, installation route and required standard scope before confirming the cable construction.
MV Cable by Model Designation
XWA also supplies published medium voltage model pages for IEC and European-style cable designations used in project specifications and tender schedules.
MV power cable is used between low-voltage distribution and high-voltage transmission systems. It supports feeder circuits, transformer substations, industrial power intake, wind and solar collection networks, mining power distribution and municipal underground grids where screened insulation and controlled earthing are required.
XWA produces medium voltage cable in single-core and three-core constructions, including copper wire screened cable, copper tape screened cable, steel wire armoured cable, steel tape armoured cable, aluminum wire armoured cable and water-blocked designs for demanding route conditions.
Distribution Voltage
Common project classes include 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV, 18/30kV and 26/35kV cable designs.
Screened XLPE System
Manufactured with conductor screen, XLPE insulation, insulation screen and metallic screen layers for stable electric field control.
Installation Options
Factory configurations cover duct, tray, direct burial, tunnel, substation, renewable energy and industrial feeder applications.

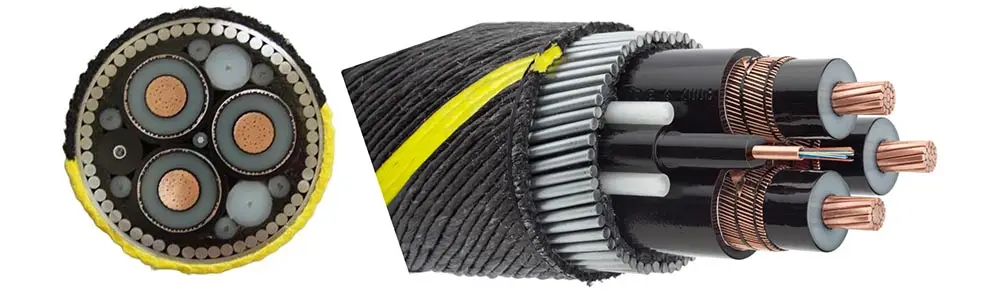

MV XLPE Cable Construction

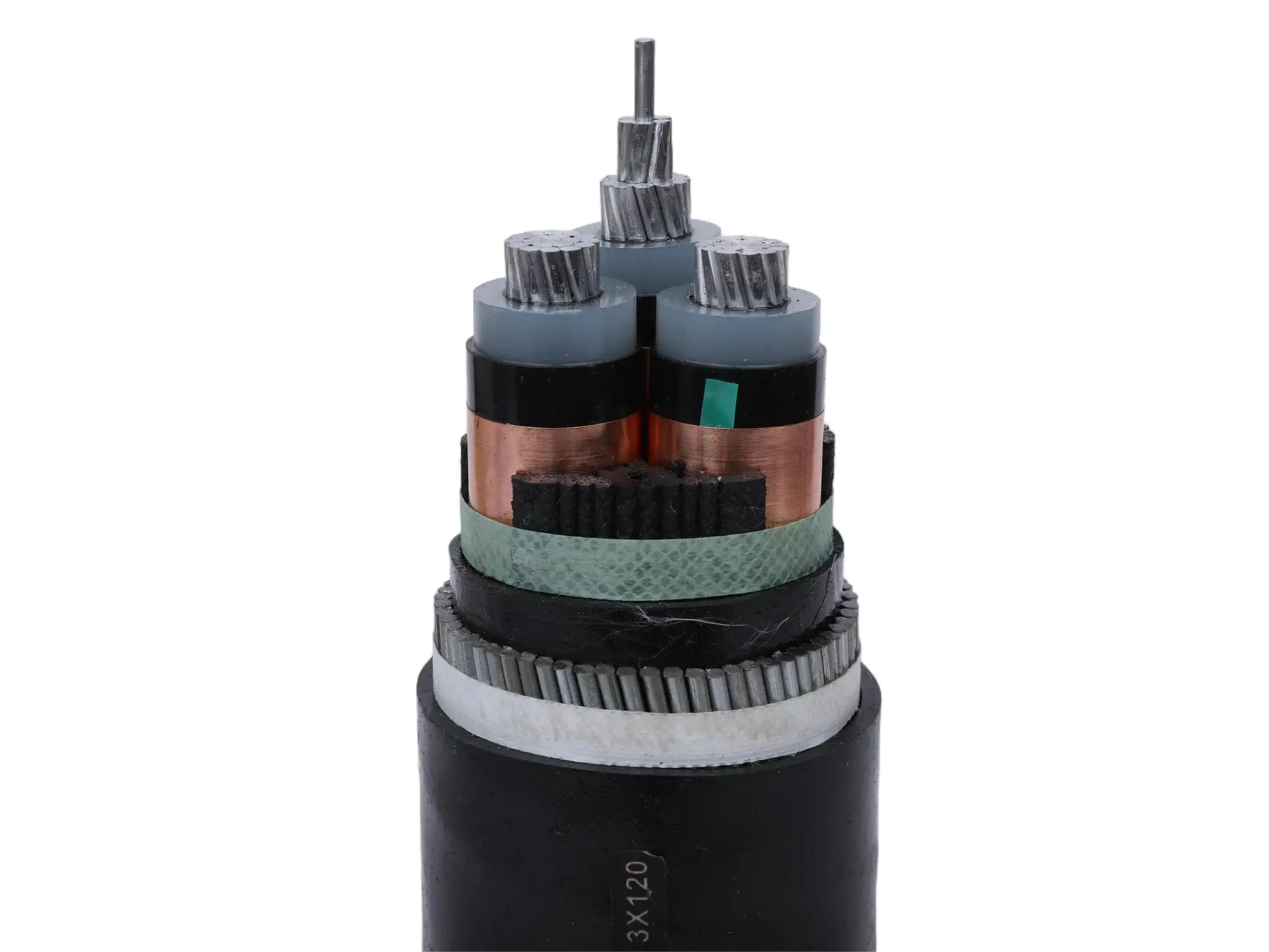

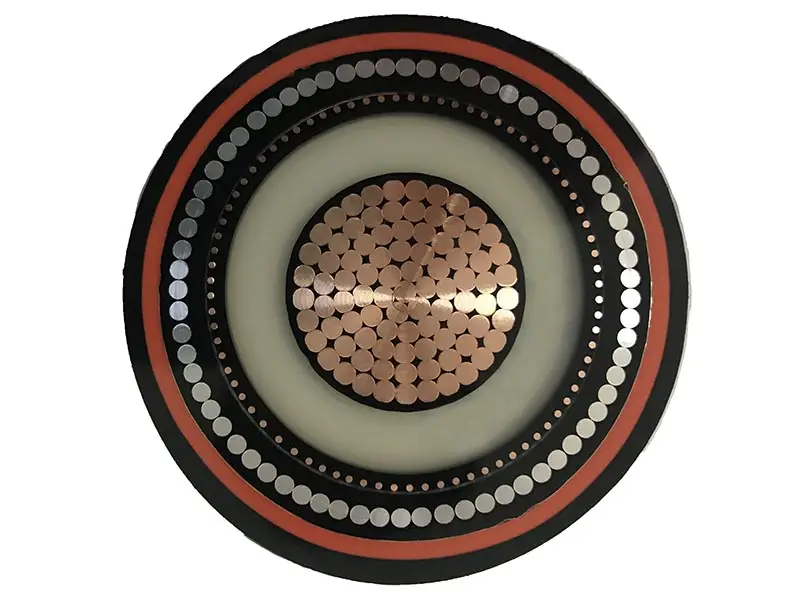

XWA produces medium voltage XLPE cable with a screened insulation system and route-specific mechanical protection. A typical MV cable includes a compacted copper or aluminum conductor, conductor screen, XLPE insulation, insulation screen, metallic screen, bedding layer, optional armor and an outer sheath selected for the installation environment.
| Conductor | Copper or aluminum, circular compacted or sector-shaped where applicable |
| Core Arrangement | Single-core, three-core and triplex configurations for MV distribution systems |
| Insulation System | Conductor screen, XLPE insulation and insulation screen |
| Metallic Screen | Copper tape screen or copper wire screen with continuity options |
| Armor and Sheath | SWA, STA, AWA, PVC, PE, LSZH and water-blocking options by route condition |
MV Cable Voltage Range and Technical Data
XWA manufactures medium voltage power cable for distribution and industrial systems from 3.6/6kV to 26/35(40.5)kV. IEC 60502-2 is normally used for extruded-insulation power cables from 6kV up to 30kV rated voltage classes. For 26/35(40.5)kV systems, XWA confirms the applicable project, utility or local specification before finalizing the cable construction.
| Voltage Class | Common Voltage Designation | Applicable Standard | Product Page |
|---|---|---|---|
| 6kV | 3.6/6(7.2)kV | IEC 60502-2 project specifications | 6kV Cable |
| 10kV | 6/10(12)kV | IEC 60502-2 project specifications | 10kV Cable |
| 15kV | 8.7/15(17.5)kV | IEC 60502-2 project specifications | 15kV Cable |
| 20kV | 12/20(24)kV | IEC 60502-2 project specifications | 20kV Cable |
| 30kV | 18/30(36)kV | IEC 60502-2 project specifications | 33kV Cable |
| 35kV | 26/35(40.5)kV | Project, utility or local specifications | 35kV Cable |
Manufacturing Reference Ranges
The technical data below summarizes common XWA manufacturing ranges for XLPE medium voltage cable by voltage class. Final conductor size, insulation thickness, overall diameter and ampacity are confirmed according to the approved cable schedule, installation conditions and applicable project specification.
| Voltage Class | Conductor Size Range | Reference Insulation Thickness | Approx. Overall Diameter | Reference Ampacity Range |
|---|---|---|---|---|
| 3.6/6(7.2)kV | 25-630mm² | 2.5-3.4mm | 28-78mm | 120-850A |
| 6/10(12)kV | 25-1000mm² | 3.4-4.5mm | 32-88mm | 130-980A |
| 8.7/15(17.5)kV | 35-1000mm² | 4.5-5.5mm | 36-96mm | 150-1050A |
| 12/20(24)kV | 35-1000mm² | 5.5-6.8mm | 40-104mm | 160-1100A |
| 18/30(36)kV | 50-1000mm² | 8.0-9.5mm | 48-118mm | 180-1150A |
| 26/35(40.5)kV | 95-1000mm² | 10.5-12mm | 58-130mm | 230-1200A |

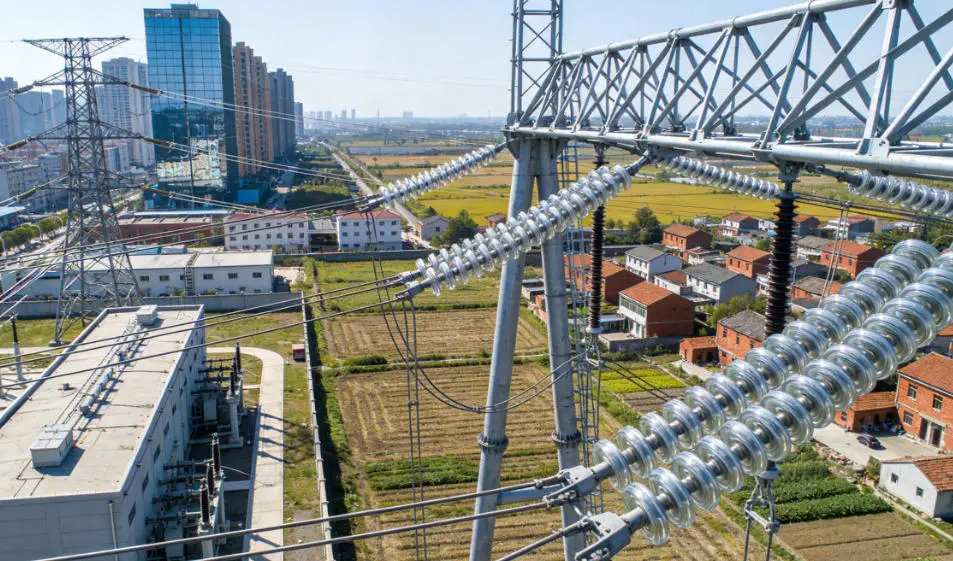

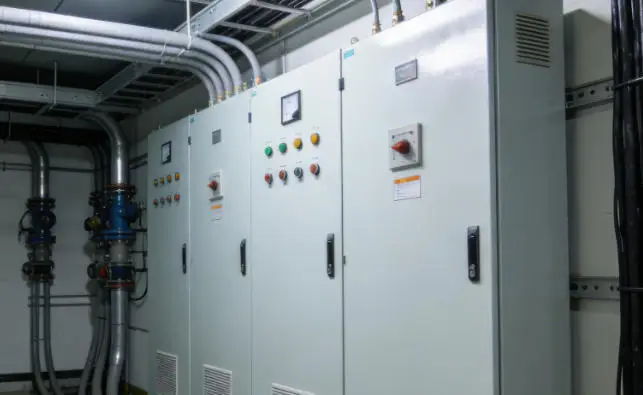

Distribution, Substation and Renewable Energy Routes

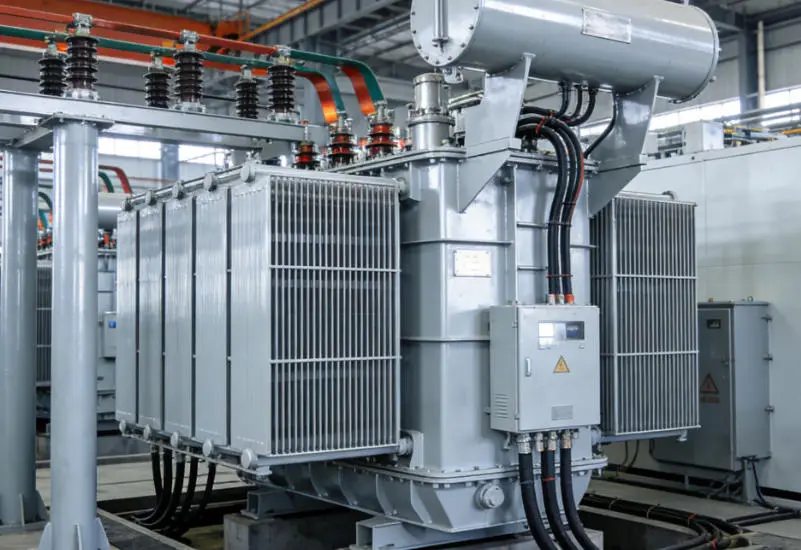

As an international medium voltage cable manufacturer, XWA focuses on underground distribution circuits, transformer substations, industrial feeders, mining power systems, tunnel routes and renewable energy collection networks. Route design can include steel wire armor, steel tape armor, aluminum wire armor, PE sheath, LSZH sheath, semiconductive sheath and water-blocked layers according to mechanical, environmental and earthing requirements.
Medium voltage cable production is arranged around cable construction, dimensional control, insulation extrusion, screen continuity, sheath integrity and routine testing records within the agreed project scope.
Related Cable Categories
Related cable categories include LV Power Cable, High Voltage Cable, Overhead Cable, Submarine Cable, ABC Cable, Control Cable and Rubber Cable.
FAQ
What is MV power cable?
MV power cable is an insulated medium voltage cable system used for electrical distribution between low-voltage equipment and high-voltage transmission networks. It commonly includes a conductor, conductor screen, XLPE insulation, insulation screen, metallic screen, bedding, optional armor and outer sheath.
What voltage range does XWA MV power cable cover?
XWA manufactures common medium voltage cable classes from 3.6/6(7.2)kV to 26/35(40.5)kV, including 6kV, 10kV, 11kV, 15kV, 20kV, 30kV, 33kV and 35kV distribution systems.
Which standard applies to MV XLPE power cable?
IEC 60502-2 is normally used for extruded-insulation medium voltage power cable through 18/30(36)kV. For 26/35(40.5)kV systems, XWA confirms the applicable project, utility or local specification before production.
How are IEC and North American MV cable voltage classes different?
IEC cable pages normally use U0/U(Um) voltage designations such as 12/20(24)kV. North American MV cable schedules commonly use nominal voltage classes such as 5kV, 15kV, 25kV and 35kV, so XWA reviews the required standard scope before confirming the cable construction.
What MV cable constructions are available?
XWA supplies single-core and three-core MV cable constructions with copper or aluminum conductors, copper tape or copper wire screens, PVC, PE or LSZH sheaths and armored or unarmored options.
Can MV cable be armoured or water-blocked?
Yes. XWA manufactures MV cable with steel wire armor, steel tape armor or aluminum wire armor for mechanical protection. Water-blocking layers and PE sheath options can be configured for underground, duct and wet-route conditions.
How does XWA control MV cable production quality?
XWA prepares MV cable production with conductor preparation, triple extrusion where applicable, screen application, armoring, sheath extrusion, dimensional checks, voltage testing and routine test records according to the agreed specification.
How does XWA prepare MV cable offers?
XWA reviews voltage designation, conductor material and size, core count, screen type, armor, sheath material, installation route, standard and drum length before preparing the cable construction and offer.
Contact XWA for MV Cable Projects
XWA prepares MV cable offers around voltage class, conductor material, core construction, screen type, armor, sheath design and required standard, with cable construction matched to the confirmed project specification.
