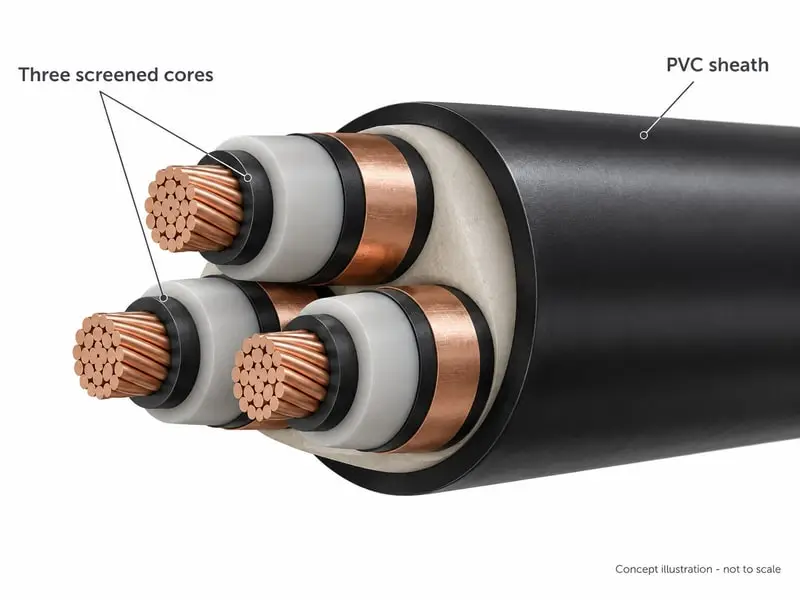

N2XSEY cable is a three-core medium-voltage power cable with stranded copper conductors, screened XLPE insulation and a common PVC outer sheath. Three phase cores form one assembled cable for fixed distribution.
The reference CU/XLPE/CTS/PVC construction uses metallic screening but no armour. The shared sheath distinguishes it from a circuit of three separate single-core cables and changes handling mass, cable-entry dimensions and installation geometry.
بناء
- الموصلات
- Three stranded copper phase conductors
- Insulated cores
- Semiconductive screens and XLPE insulation
- Metallic screens
- Copper tape screening in the reference construction
- Assembly
- Filler and common PVC sheath; غير مدرع
صفات
- Reference voltage
- 12/20 kV for the displayed dataset
- Core layout
- Three screened cores in one cable body
- Thermal reference
- 90°C maximum operating conductor temperature in the source design
- Standard context
- اللجنة الانتخابية المستقلة 60502-2 and relevant VDE/HD project requirements
N2XSEY for Fixed Power Distribution
الجهد االكهربى, conductor/screen size and route conditions define the project configuration.
N2XSEY Cable Technical Data
Recommended reference data. Final dimensions and ratings follow the approved project configuration; the selected rows are not a confirmed XWA production range.
| حجم الكابل (مم²) | مقاومة العاصمة 20درجة مئوية (أوم / كم) | تقريبا. ل (مم) | تقريبا. كتلة (كجم/كم) | Air (أ) | Ground (أ) |
|---|---|---|---|---|---|
| 3 س 95/16 | 0.1930 | 67.0 | 6900 | 326 | 316 |
| 3 س 150/25 | 0.1240 | 74.5 | 9250 | 426 | 404 |
| 3 س 185/25 | 0.0991 | 78.5 | 10650 | 488 | 457 |
| 3 س 240/25 | 0.0754 | 85.0 | 13000 | 576 | 532 |
| 3 س 300/25 | 0.0601 | 90.0 | 15250 | 654 | 599 |
| 3 س 400/35 | 0.0470 | 98.0 | 19100 | 750 | 685 |
Three-core CU/XLPE/CTS/PVC, 12/20 كيلو فولت. Mass and diameter describe the assembled cable. The /screen notation does not create a fourth phase core; the approved drawing defines the screen arrangement.
Reference ampacity: one system; air 30°C, عامل التحميل 1.0; ground 20°C, عمق 0.7 م, المقاومة الحرارية 1.0 كم/ث, عامل التحميل 0.7. Reference conductor limit: 90درجة مئوية. The buried ratings do not represent a continuously fully loaded circuit at load factor 1.0.

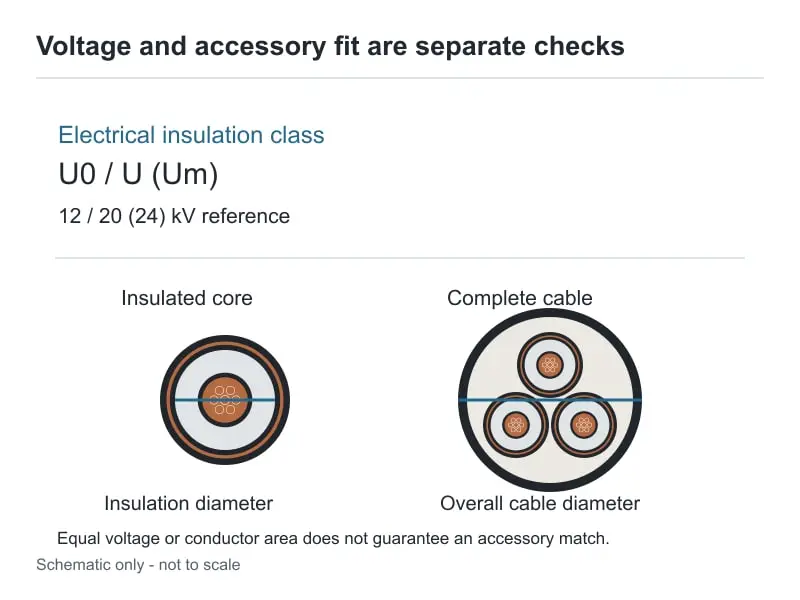

Three-core construction and accessory interfaces
A single overall sheath fixes the relative positions of the three phase cores. Three separate single-core cables permit a chosen flat or trefoil arrangement. Equal voltage and conductor area do not make their current-rating or handling data interchangeable.
Termination stress-control components fit the insulation diameter and screen treatment. Glands and entry seals fit the complete cable diameter. The 3×240/25 reference is approximately 85 mm in diameter and 13 كجم/م, before drum tare; handling calculations therefore use assembly mass, not copper mass alone.
Applications and Installation Conditions
التوزيع الصناعي, substation connections and underground or ducted feeder sections can suit a combined three-core assembly. Pulling equipment, route access and bending limits must fit the complete cable. درع, water blocking and enhanced fire-performance sheaths require separately identified constructions rather than assumptions about the N2XSEY name.
The production definition must identify screen arrangement, insulation and sheath thicknesses, accessory diameters and applicable tests for the assembled three-core cable. The official standard scope concerns fixed distribution installations, not an automatic claim of approval for special service.
N2XSEY and Related Constructions
| نموذج | Main difference |
|---|---|
| N2XSY single-core cable | Each phase cable has its own sheath; circuit geometry and bonding need separate assessment. |
| 20 نطاق كابل كيلو فولت | Voltage-class context for 12/20(24) kV projects, rather than an exact three-core model. |
| Armoured MV construction | Mechanical armour adds a separate layer and changes the specified design and dimensions. |
N2XSEY Cable FAQs
Does N2XSEY mean the cable is armoured?
لا. The reference screened construction is unarmoured. A metallic screen provides an electrical function and is not mechanical armour.
Can 12/20 kV dimensions be used for a 6/10 kV variant?
لا. The values here belong only to the stated 12/20 kV construction. A different voltage design needs its own dimensional and rating data.
Is N2XSEY the same as three N2XSY cables?
لا. N2XSEY combines three phase cores within one sheath. Separate N2XSY cables have different assembly, handling and installation arrangements.
