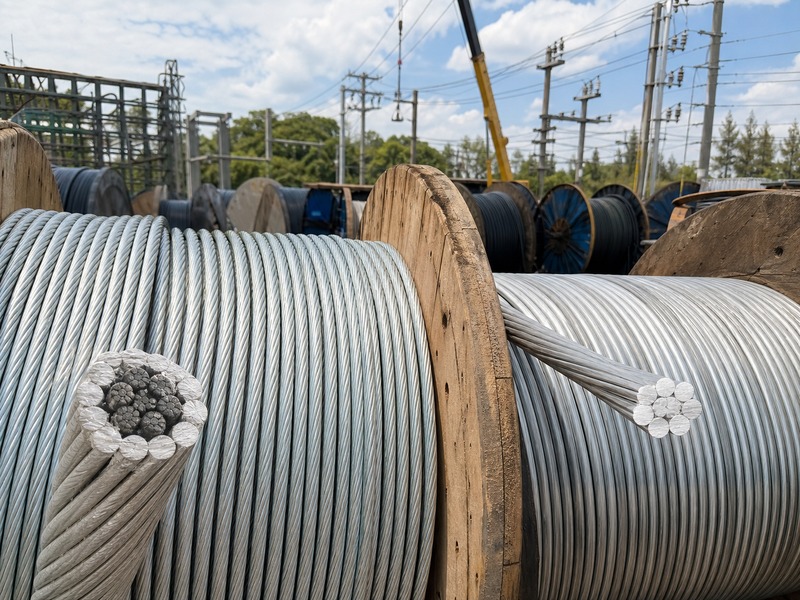

ACSR vs AAAC conductor is not only a material comparison. It is an overhead-line engineering decision involving tensile strength, span length, corrosion exposure, sag behavior, operating temperature, short-circuit duty, আনুষাঙ্গিক, and the standard specified for the project. ACSR uses aluminum strands around a steel core. AAAC uses aluminum alloy strands without a steel core. Both conductor families are widely used in distribution and transmission lines, but they solve different mechanical and environmental problems.
From XWA Power & Cable’s factory engineering view, the comparison starts with the route. লম্বা স্প্যান, river crossings, mountainous terrain, heavy ice, and high mechanical tension often push the design toward ACSR cable. Coastal routes, শিল্প দূষণ, humid climates, and corrosion-sensitive distribution lines often make AAAC ড্রাইভার more attractive. The final choice depends on line design data rather than the conductor name alone.
What Changes Inside The Conductor
ACSR means aluminum conductor steel reinforced. The outer aluminum strands carry current, while the steel core gives high tensile strength. This construction allows long spans and high mechanical loading, especially where a conductor must cross wide valleys, rivers, or areas with strong wind and ice loading.

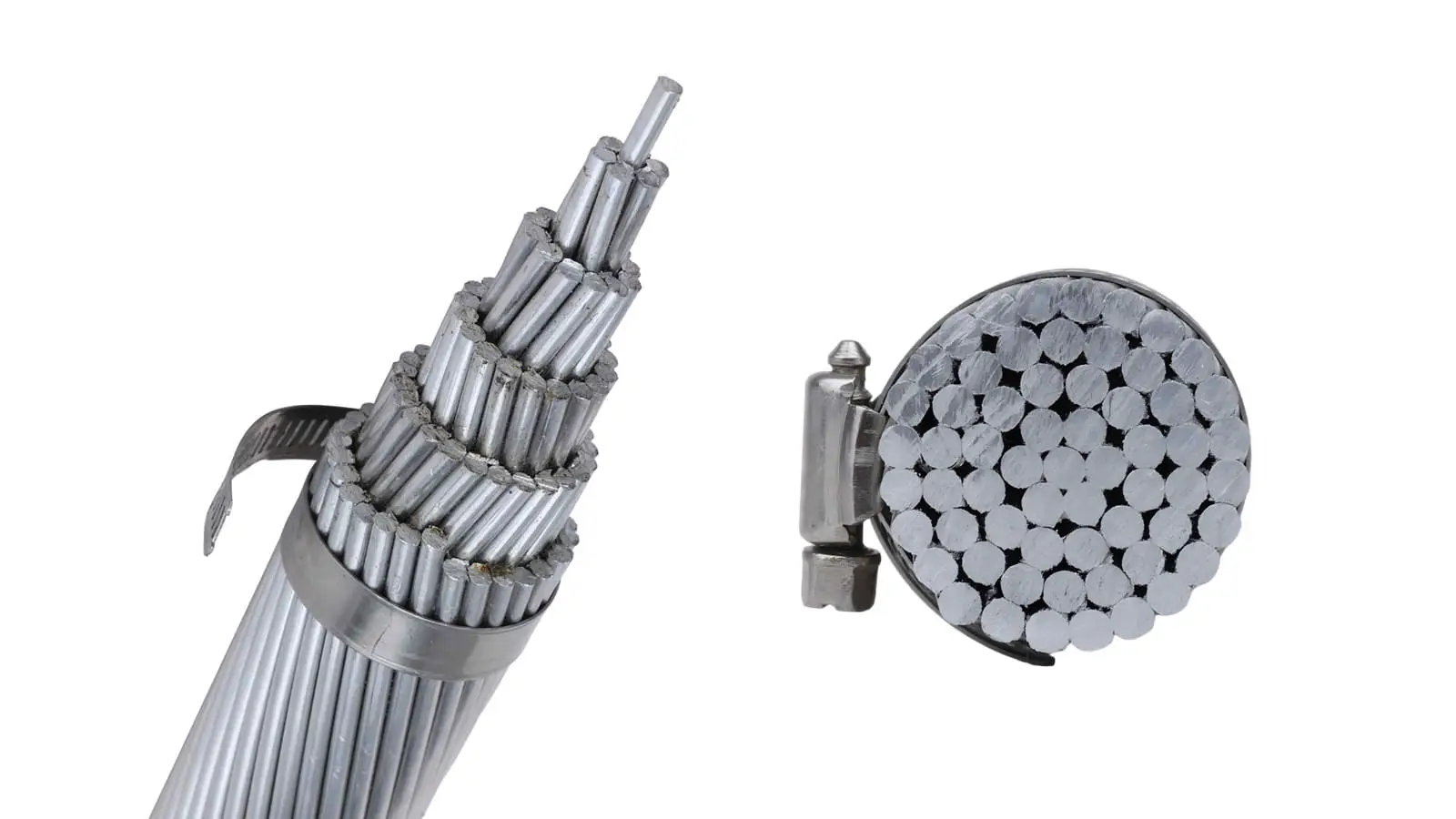

AAAC means all aluminum alloy conductor. Instead of a steel core, the complete conductor is made from heat-treated aluminum alloy strands, commonly from the 6201 alloy family in many standards. The alloy gives better strength than pure aluminum while keeping the conductor free from a dissimilar steel core. This is important where corrosion, ওজন, and long-term surface condition matter.
| আইটেম | ACSR Conductor | AAAC ড্রাইভার |
|---|---|---|
| Main construction | Aluminum strands over galvanized or coated steel core | Aluminum alloy strands only |
| Main engineering advantage | High tensile strength for long spans and heavy mechanical loading | Good corrosion resistance and strength-to-weight balance |
| Corrosion behavior | Steel core requires correct protection in aggressive environments | No steel core, lower risk of galvanic corrosion inside the conductor |
| ওজন | Usually heavier for the same current-carrying duty | Usually lighter, depending on size and standard |
| Typical applications | Transmission, sub-transmission, long spans, high-tension routes | Distribution, coastal routes, industrial areas, corrosion-sensitive lines |
Mechanical Strength Is The First Difference
ACSR is often chosen when mechanical strength controls the route design. The steel core gives high rated tensile strength and allows the conductor to maintain line clearance across demanding spans. This is why ACSR appears frequently in transmission and sub-transmission networks where span length, wind load, ice load, and tower spacing create high mechanical stress.
AAAC also has useful tensile strength, but its strength comes from the aluminum alloy strands rather than a central steel reinforcement. The result is a conductor with good strength and lower weight, but not the same high-tension behavior as many steel-reinforced designs. In practical overhead-line design, this means AAAC can perform well on many distribution and medium-span routes, while ACSR remains strong for more severe span and tension requirements.
Corrosion Exposure Often Moves The Decision Toward AAAC
Corrosion is one of the main reasons engineers compare AAAC against ACSR. In ACSR, aluminum and steel exist in the same conductor. The steel core is protected by galvanizing or other coating, but severe coastal salt, শিল্প দূষণ, chemical exposure, and long-term moisture can still make conductor protection a critical issue. Correct construction, grease application where specified, and suitable steel-core protection become important for line life.
AAAC removes the steel core from the conductor body. This gives the design a natural advantage in many corrosive environments, especially coastal distribution networks and humid industrial regions. The aluminum alloy strands still need proper handling, আনুষাঙ্গিক, and installation practice, but the absence of steel reduces one important corrosion path.
| রুট কন্ডিশন | Engineering Preference | Reason |
|---|---|---|
| Long valley or river crossing | Often ACSR | High tensile strength and span control |
| Coastal distribution line | Often AAAC | No steel core and better corrosion behavior |
| Heavy ice or wind region | Often ACSR | Mechanical loading can dominate the design |
| Urban or semi-urban distribution | AAAC or covered/ABC alternatives | ওজন, ক্ষয়, safety clearance, and network style may dominate |
| Existing hardware designed for ACSR | Often ACSR unless redesign is approved | Fittings, tension clamps, sag tables, and tower design must match |
Sag, Creep, And Clearance Need Route-Specific Calculation
Conductor selection changes line sag. ACSR and AAAC have different weight, modulus, thermal expansion behavior, and long-term creep characteristics. The visible result is the final conductor profile between poles or towers. Clearance to ground, রাস্তা, buildings, trees, telecom lines, and other utilities depends on this profile.
ACSR’s steel core helps resist elongation under tension. AAAC’s lower weight can reduce loading on structures, but its thermal and creep behavior must be calculated using the correct conductor data. XWA engineering documentation can support conductor diameter, স্ট্র্যান্ড নির্মাণ, approximate mass, rated tensile strength, ডিসি প্রতিরোধ, and applicable standard so that line designers can run the required sag-tension calculation.
Electrical Performance Is Similar Only After Size Is Defined
Some comparisons oversimplify electrical performance. Current capacity is not determined by the product name alone. It depends on conductor cross-section, stranding, resistance, পরিবেষ্টিত তাপমাত্রা, wind speed, solar radiation, allowable operating temperature, installation height, surface condition, and the thermal model used by the line designer.
For the same nominal diameter or mass, ACSR and AAAC may not deliver the same resistance or ampacity. For the same current requirement, the selected size may change. In a factory quotation or technical datasheet, the useful comparison is not simply ACSR versus AAAC. The useful comparison is one defined size and construction against another defined size and construction under a stated standard.
Standards Define The Real Product, Not The Short Name
ACSR and AAAC are family names. The actual conductor must be tied to a recognized standard, project specification, or utility specification. Common references include IEC 61089 for round wire concentric lay overhead electrical stranded conductors, ASTM B232/B232M for ACSR, and ASTM B399/B399M for aluminum alloy 6201-T81 concentric-lay-stranded conductors. Other national or utility standards can apply depending on the country and project.
The standard controls conductor designation, material, stranding, dimensional tolerance, resistance, mechanical requirements, test method, চিহ্নিত করা, and acceptance rules. When XWA prepares conductor data, the standard is treated as a production requirement, not a decoration on the datasheet.
| Standard Reference | Common Use In Conductor Projects | Why It Matters In Production |
|---|---|---|
| আইইসি 61089 | International overhead stranded conductors | Defines conductor construction and test framework |
| ASTM B232/B232M | ACSR conductor | Defines steel-reinforced aluminum conductor requirements |
| ASTM B399/B399M | AAAC conductor with 6201 alloy | Defines alloy conductor requirements and material expectations |
| Utility specification | Local power network projects | May add packing, চিহ্নিত করা, tests, গ্রীস, or acceptance details |
Hardware Compatibility Can Decide The Choice
An overhead conductor does not work alone. Suspension clamps, tension clamps, dead-end fittings, armor rods, vibration dampers, সংযোগকারী, sleeves, spacers, and insulators must match the conductor construction. A conductor change can affect groove diameter, clamping force, fatigue behavior, galvanic contact, and installation method.
This is especially important when replacing existing lines. A network originally designed around ACSR may already have fittings, span charts, tower loads, and maintenance procedures based on a steel-reinforced conductor. Switching to AAAC may still be possible, but the route design and accessories need review. The same logic applies in the opposite direction: replacing AAAC with ACSR can change structure loads and fitting requirements.
Where ACSR Usually Fits Better
ACSR is usually stronger when the overhead route is mechanically demanding. লম্বা স্প্যান, high-tension stringing, heavy wind, ice loading, and transmission-level applications often favor a steel-reinforced conductor. The design can carry significant mechanical load while maintaining acceptable clearance.
ACSR also fits projects where the existing network, tower design, and utility standard already specify a known ACSR code name. In that case, matching the conductor construction, strand count, steel core type, and standard can reduce redesign risk. XWA supplies ACSR conductor according to agreed standards and can align drum marking and packing with project documentation.
Where AAAC Usually Fits Better
AAAC is usually stronger where corrosion resistance, lower weight, and distribution-line efficiency matter more than maximum tensile strength. Coastal networks, humid regions, and industrial areas often benefit from an all-aluminum-alloy construction. The conductor avoids the internal steel core used in ACSR and can provide good long-term behavior when matched with suitable accessories.
AAAC can also be useful where structure loading must be reduced. Lower conductor weight can help in distribution networks with lighter poles or moderate spans. The final result still depends on sag-tension calculations and the exact conductor size, but AAAC gives line designers another practical option between pure aluminum conductors and steel-reinforced conductors.
How XWA Reviews ACSR And AAAC Requirements
XWA engineering review normally starts with the conductor standard, nominal area or code name, voltage network, route environment, span information, mechanical load conditions, and packing requirement. For ACSR, steel core construction and corrosion protection details receive special attention. For AAAC, খাদ গ্রেড, stranding, resistance, and mechanical strength are reviewed against the required standard.
Factory quality control may include dimensional inspection, conductor resistance, strand inspection, lay direction, lay length, surface condition, tensile-related checks according to the agreed standard, drum inspection, and marking review. These controls help the delivered conductor match the technical file used for the overhead-line design.
ACSR, AAAC, এএসি, And ABC In The Same Overhead System
Overhead networks can use several conductor families together. ACSR may serve long or mechanically demanding spans. AAAC may serve corrosion-sensitive distribution routes. AAC may appear where short spans and high conductivity are more important than tensile strength. ABC cable may be selected where insulated bundled construction improves service-drop safety, reduces contact risk, or simplifies low-voltage distribution in populated areas.
For broader overhead distribution context, the article গ্রামীণ বিদ্যুতায়ন প্রকল্পের জন্য ABC কেবল বনাম বেয়ার কন্ডাক্টর explains when an insulated overhead solution is compared with bare conductor systems. This supports the conductor decision without replacing product-level specifications for ACSR or AAAC.
Engineering Summary
| Decision Factor | ACSR Advantage | AAAC Advantage |
|---|---|---|
| Long-span strength | Very strong due to steel reinforcement | ভাল, but usually less suitable for the highest mechanical tension |
| Corrosion-sensitive route | Requires correct steel-core protection | Often stronger because it has no steel core |
| Structure loading | Can be heavier | Often lighter for comparable applications |
| Replacement projects | Good when the existing design is ACSR-based | Good when redesign targets corrosion or weight reduction |
| Documentation focus | Steel core, aluminum area, প্রসার্য শক্তি, resistance, grease if required | Alloy grade, স্ট্র্যান্ড নির্মাণ, প্রসার্য শক্তি, resistance, surface condition |
FAQ
Is AAAC always better than ACSR in coastal areas?
AAAC often has an advantage in coastal and corrosive environments because it has no steel core. The final selection still depends on span length, mechanical loading, জিনিসপত্র, local standard, and line-clearance calculation.
Does ACSR carry more current than AAAC?
Current capacity depends on the exact conductor size, resistance, operating temperature, ambient conditions, বায়ু, solar radiation, and the thermal model. ACSR and AAAC cannot be compared accurately without defined constructions and installation conditions.
Can AAAC replace ACSR on an existing overhead line?
Replacement requires engineering review. The conductor weight, প্রসার্য শক্তি, স্তব্ধ, জিনিসপত্র, tower or pole loading, and protection hardware may change. A direct material swap without route calculation can create clearance or accessory problems.
Which standards are commonly used for ACSR and AAAC?
Common references include IEC 61089 for overhead stranded conductors, ASTM B232/B232M for ACSR, and ASTM B399/B399M for AAAC. Project or utility specifications may add local requirements for packing, চিহ্নিত করা, গ্রীস, test documents, or conductor code names.
What information helps XWA configure the correct conductor?
The useful project data includes conductor type or code name, মান, nominal area, স্ট্র্যান্ড নির্মাণ, route environment, span range, mechanical loading condition, ড্রাম দৈর্ঘ্য, প্যাকিং পদ্ধতি, and destination requirements. Contact XWA for ACSR or AAAC conductor configuration based on the project specification.
