N2XS(F)2und Kabel is a screened single-core copper power cable with XLPE insulation, ein Schirm aus Kupferdraht, longitudinal water-blocking components and a PE outer sheath. It is intended for fixed medium-voltage distribution rather than flexible trailing service.

The copper conductor carries load current; the surrounding screen performs a separate electrical duty. Industrial feeders, substation circuits and underground networks use this construction where the voltage, bonding arrangement and route conditions match the cable-system design.

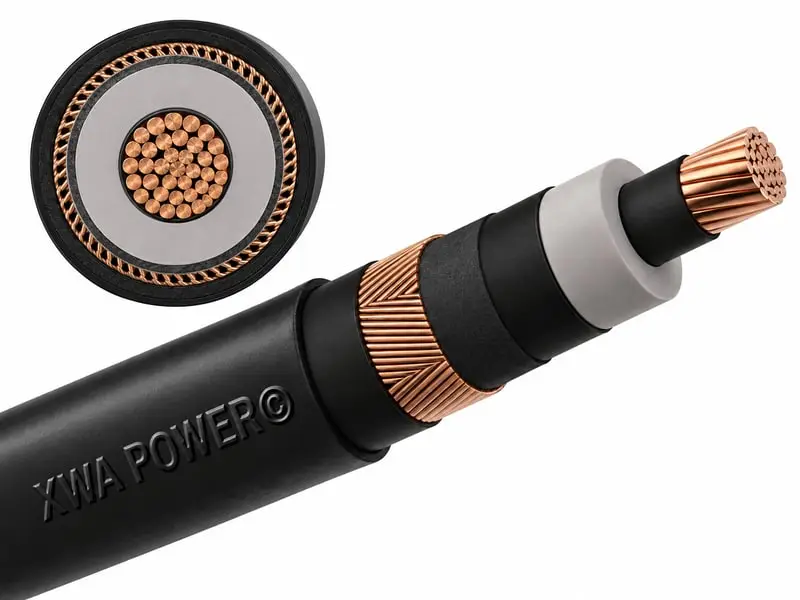

Copper single-core XLPE cable cutaway showing the conductor, copper wire screen and black PE sheath — Single-core copper construction with metallic screening. Illustration, not to scale.

KONSTRUKTION

Leiter: Stranded copper
Isolierung: XLPE between semiconductive conductor and insulation screens
Screen region: Copper wires and tape; longitudinal water-blocking components
Außenmantel: Black PE; no armour in the reference construction

EIGENSCHAFTEN

Reference voltage: 12/20 (24) kV
Core configuration: Single-Core; separate conductor and screen areas
Thermal reference: 90°C maximum operating conductor temperature in the source design
Standard context: HD 620 / DIN VDE 0276-620; agreed project requirements

N2XS(F)2Y for Fixed Power Distribution

Stromspannung, conductor/screen size and route conditions define the project configuration.

Fordern Sie ein Angebot an

N2XS(F)2Technische Daten des Y-Kabels

Recommended reference data. Final dimensions and ratings follow the approved project configuration; the selected rows are not a confirmed XWA production range.

Kabelgröße (mm²)	Gleichstromwiderstand 20°C (Ω/km)	Isolierung (mm)	Ca. VON (mm)	Ca. Masse (kg/km)	Air (A)	Ground (A)
1 X 95/16	0.193	5.5	32	1580	361	323
1 X 150/25	0.124	5.5	35	2212	470	409
1 X 240/25	0.075	5.5	39	3181	634	532
1 X 300/25	0.060	5.5	42	3851	724	599
1 X 400/35	0.047	5.5	44	4795	829	671
1 X 500/35	0.037	5.5	47	5873	953	754

Copper single-core N2XS(F)2Y, 12/20 kV, copper wire screen and PE sheath. The listed dimensions, mass and current ratings apply to this reference construction and the installation conditions below.

Ampacity basis: one circuit in touching trefoil, screens solidly bonded; air 30°C without direct sun; ground 20°C at 0.7 m depth. Source assumptions include 1.0 K·m/W wet soil and 2.5 K·m/W dry soil, with no additional heat sources. Reference conductor limit: 90°C.

Kupferleiter, metallic screen and the (F) Bezeichnung

In a reference 1×240/25 Konstruktion, 240 mm² belongs to the phase conductor and 25 mm² to the metallic screen. Screen fault-current duty, protection clearing time and accessory connections are separate from continuous conductor ampacity.

Der (F) construction uses water-blocking components to limit moisture propagation along the cable. N2XS(FL)2Y adds a laminated metallic barrier beneath the PE sheath for radial moisture protection. A PE sheath alone does not provide the same barrier construction.

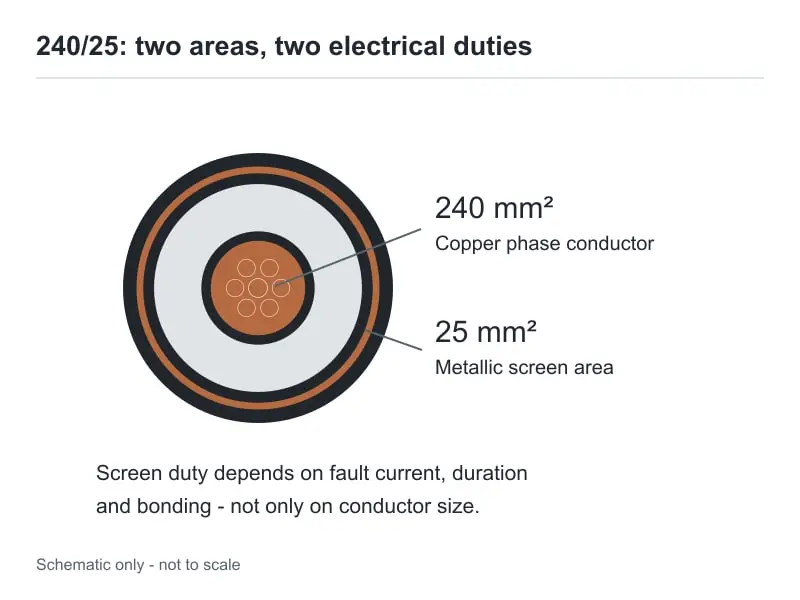

Single-core copper cable diagram explaining a 240 mm2 conductor and a separately specified 25 mm2 metallic screen — The conductor area and screen area are separate specification entries.

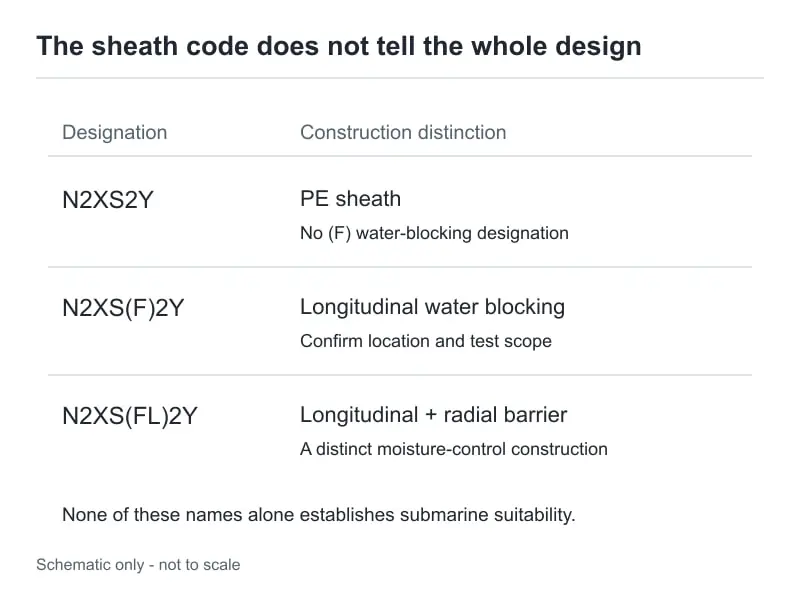

Comparison of ordinary PE sheath, longitudinal water blocking and a longitudinal plus radial barrier construction — Der (F) Und (FL) variants are different constructions, not interchangeable spelling choices.

Applications and Installation Conditions

Fixed industrial power intake, substation feeders and underground distribution can use this screened construction. Unarmoured cable still needs route-specific mechanical protection. Indoor fire requirements, water exposure and accessory interfaces must match the stated design; the model name alone does not establish submarine suitability.

The test schedule distinguishes conductor resistance, insulation tests and sheath checks from the evidence for the (F) Wasserbarriere. Screen connections and accessory interfaces also belong to the cable-system specification. The IEC publication scope explains the fixed-installation framework; certification requires separate evidence.

N2XS(F)2Y and Related Constructions

Modell	Main difference
N2XS2Y cable	Kupferleiter, XLPE insulation and PE sheath; longitudinal water blocking is not specified by the N2XS2Y designation.
N2XSY cable	Copper screened MV cable with PVC outer sheath.
N2XS(FL)2Y	Combines longitudinal water blocking with a laminated metallic barrier beneath the PE sheath for radial moisture protection.

N2XS(F)2Häufig gestellte Fragen zu Y-Kabeln

Are N2XS(F)2Y and N2XS2Y interchangeable?

Nicht automatisch. Der (F) construction includes longitudinal water blocking; an ordinary PE-sheathed cable should not be assumed to provide the same water-penetration performance.

What does 1×240/25 identify?

One 240 mm² phase conductor and a separately specified 25 mm² metallic screen in the reference construction. The screen is not another power core.

Can the displayed ampacity be used for ducts?

Not directly. The table uses the stated trefoil, bonding and thermal conditions. Kanäle, surrounding materials and grouped circuits require the applicable current-rating calculation.
