High Voltage 2XS(フロリダ州)2とケーブル

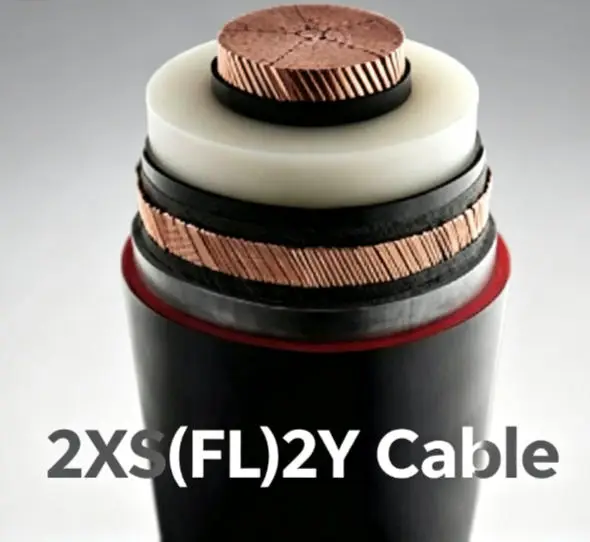

2XS(フロリダ州)2とケーブル is a single-core high-voltage power cable with a copper conductor, XLPE絶縁体, 金属スクリーン, longitudinal and radial water-blocking layers, and a polyethylene outer sheath.
The designation is used for underground and ducted high-voltage distribution and transmission routes where IEC 60840-type construction, water blocking and PE sheath performance are part of the project specification. Common voltage classes include 26/45 (52) kV, 36/60 (72.5) kV, 64/110 (123) kVと 76/132 (145) kV.
XWA supplies project-configured 2XS(フロリダ州)2Y high-voltage cable according to the confirmed voltage class, 導体サイズ, screen section, シース材質, test requirement, drum length and export documentation scope.
工事
導体:
クラス 2 stranded copper conductor; watertight conductor option where specified
絶縁:
XLPE insulation with extruded semiconductive conductor and insulation screens
メタリックスクリーン:
Copper wires with equalising tape and water-swelling tape around the screen area
Radial Barrier:
Longitudinal aluminium copolymer laminated tape bonded to the PE sheath for radial water blocking
特徴
Voltage Classes:
26/45 (52) kV, 36/60 (72.5) kV, 64/110 (123) kVと 76/132 (145) kV
アウターシース:
HDPE or MDPE outer sheath, normally black; semiconductive outer layer by project requirement
インストール:
Fixed high-voltage installation in ground, ダクト, trenches, substations and utility network routes
規格:
Common references include IEC 60840 およびIEC 60228. Standard reference is not a certification or project approval claim.
2XS(フロリダ州)2Y High Voltage Cable for Underground Networks
XWA manufactures high-voltage XLPE cable configurations for utility networks, 変電所, renewable energy grid connections and industrial power systems.
2XS(フロリダ州)2Y Cable Technical Data
推奨参考データ: 2XS(フロリダ州)2Y is normally a single-core high-voltage cable. The table below is a planning reference for copper-conductor 110 kVと 132 kV class designs, not a guaranteed XWA datasheet.
Final cable dimensions, conductor construction, screen section, sheath thickness, induced-voltage design and current-carrying capacity depend on the approved project datasheet, bonding method, route spacing, 埋設深さ, 周囲温度, soil thermal resistivity and installation standard.
Voltage and Size Coverage
| 電圧クラス | Typical route | Cross-section coverage | Planning note |
|---|---|---|---|
| 26/45 (52) kV | 45 kV class underground HV routes | 150-3000 mm2 reference range | IEC 60840 HV cable scope |
| 36/60 (72.5) kV | 60 kV / 66 kV utility distribution | 185-3000 mm2 reference range | Often specified for sub-transmission feeders |
| 64/110 (123) kV | 110 kV grid and industrial feeders | 150-3000 mm2 reference range | Core page intent for 110kV 2XS(フロリダ州)2Y |
| 76/132 (145) kV | 132 kV transmission and substation routes | 185-3000 mm2 reference range | Core page intent for 132kV 2XS(フロリダ州)2Y |
Construction Matrix
| 層 | Typical material | Function |
|---|---|---|
| 導体 | 銅, クラス 2 立ち往生した | Optional water-tight conductor when specified |
| 導体スクリーン | Extruded semiconductive layer | Applied as part of the triple-extruded insulation system |
| 絶縁 | XLPE | 90 C normal conductor temperature reference |
| Insulation screen | Extruded semiconductive layer | Matched to the insulation system |
| Wrapping | Semiconductive water-swelling tape | Longitudinal water blocking around the screen area |
| 金属スクリーン | Copper wires and equalising tape | Screen section follows fault-current design |
| Radial barrier | Aluminium copolymer laminated tape | The FL element provides radial water-blocking logic |
| アウターシース | HDPE or MDPE | Black sheath; semiconductive layer optional |
Selected 110 kVと 132 kV Reference Rows
| 電圧クラス | ケーブルサイズ (mm2) | マックス. DC resistance at 20 C (オーム/キロ) | Nominal XLPE insulation (mm) | Typical screen section (mm2) | Use note |
|---|---|---|---|---|---|
| 64/110 (123) kV | 1 × 150 | 0.124 | 16.0 | 95 | Typical entry size for 110 kV class |
| 64/110 (123) kV | 1 × 300 | 0.0601 | 16.0 | 95 または 120 | Common 110 kV project size |
| 64/110 (123) kV | 1 × 630 | 0.0283 | 16.0 | 95 または 120 | High-capacity underground feeder |
| 64/110 (123) kV | 1 × 1000 | 0.0176 | 16.0 | 120 | High-current route, bonding review required |
| 76/132 (145) kV | 1 × 185 | 0.0991 | 16.5 | 95 または 120 | 132 kV entry project range |
| 76/132 (145) kV | 1 × 300 | 0.0601 | 16.5 | 95 または 120 | Common 132 kV project size |
| 76/132 (145) kV | 1 × 630 | 0.0283 | 16.5 | 95 または 120 | High-capacity 132 kV feeder |
| 76/132 (145) kV | 1 × 1000 | 0.0176 | 16.5 | 120 | Large-section transmission route |
2XS(フロリダ州)2Y Cable Construction
2XS(フロリダ州)2Y uses a copper conductor with an extruded conductor screen, XLPE insulation and extruded insulation screen. The metallic screen uses copper wires and an equalising tape, with semiconductive water-swelling tape placed around the screen area.
The `(フロリダ州)` part is the key distinction from simpler PE-sheathed HV cable. It indicates a water-blocked design with longitudinal water blocking and a radial barrier formed by an aluminium copolymer laminated tape bonded to the polyethylene sheath.
This construction is normally single-core. Three-core high-voltage cable is not treated as the standard form for this designation because electrical stress control, 曲げ半径, screen bonding and installation handling are different.
Applications for 2XS(フロリダ州)2Y High Voltage Cable
2XS(フロリダ州)2Y Cable is used in buried high-voltage networks, duct routes, 変電所接続, renewable-energy grid connections, industrial incoming feeders and utility transmission circuits where PE-sheathed water-blocked HV cable is specified.
The design is especially relevant where moisture exposure, long underground routes, joint bays and sheath integrity are important parts of the cable system. Cable accessories, bonding design and route thermal calculation remain part of the complete HV system design.
For tunnels, indoor termination sections or routes requiring low-smoke zero-halogen sheath behaviour, the related `2XS(フロリダ州)H` construction may be reviewed instead of a PE-sheathed `2Y` design.
2XS(フロリダ州)2Y vs A2XS(フロリダ州)2Y and 2XS(F)2Y
2XS(フロリダ州)2Y and A2XS(フロリダ州)2Y share the same high-voltage water-blocked cable logic, but the conductor material is different. 2XS(フロリダ州)2Y uses copper, while A2XS(フロリダ州)2Y uses aluminium.
2XS(F)2Y is not the same as 2XS(フロリダ州)2Y. The `(F)` designation is associated with longitudinal water blocking, while `(フロリダ州)` adds the laminated radial barrier concept. This difference matters for wet underground routes and sheath-damage risk.
N2XS2Y and N2XSY pages remain medium-voltage designations. The 2XS(フロリダ州)2Y page targets high-voltage IEC 60840-type project intent and should not compete with the medium-voltage cluster.
| モデル | Main distinction | Page role |
|---|---|---|
| 2XS(フロリダ州)2Y | 銅導体, XLPE, water-blocked screen area, laminated radial barrier, PEシース | This page |
| A2XS(フロリダ州)2Y | Aluminium conductor version | Next companion HV page |
| 2XS(F)2Y | Copper conductor with longitudinal water blocking, without the same FL radial-barrier meaning | Separate water-blocked variant |
| 2XS(フロリダ州)H | LSZH outer sheath direction | Indoor or low-smoke route comparison |
テスト, Documents and Export Packing
High-voltage 2XS(フロリダ州)2Y cable documentation can include the approved datasheet, conductor resistance record, voltage test record, partial-discharge test record, シーステスト, dimensional inspection, drum schedule, packing list and product photos.
Type-test evidence, third-party inspection and project-specific test documentation are handled according to the exact voltage class, cable construction and contract requirement. No third-party certification, grid approval or project reference is implied unless separately verified.
Export packing is planned by cable weight, maximum drum diameter, transport route, lifting method and container loading limit. Large-section 110 kVと 132 kV single-core cables require drum-length planning before production.
2XS(フロリダ州)2Y Cable FAQs
What is 2XS(フロリダ州)2とケーブル?
2XS(フロリダ州)2Y Cable is a single-core copper-conductor high-voltage XLPE cable with metallic screen, longitudinal water blocking, laminated radial water barrier and polyethylene outer sheath. It is used for fixed HV underground and ducted cable systems.
What voltage classes are common for 2XS(フロリダ州)2とケーブル?
Common project voltage classes include 26/45 (52) kV, 36/60 (72.5) kV, 64/110 (123) kVと 76/132 (145) kV. The project specification defines the exact Uo/U and Um rating.
What does FL mean in 2XS(フロリダ州)2とケーブル?
The `(フロリダ州)` element indicates water-blocking construction with longitudinal water-blocking layers and a laminated radial barrier bonded to the polyethylene sheath. It is a key distinction from simpler PE-sheathed HV cable.
Is 2XS(フロリダ州)2Y a single-core or three-core cable?
2XS(フロリダ州)2Y is normally a single-core HV cable. Three-core high-voltage designs require a separate review because the construction, アクセサリー, installation handling and electrical design are different.
What is the difference between 2XS(フロリダ州)2Y and A2XS(フロリダ州)2Y?
2XS(フロリダ州)2Y uses a copper conductor. A2XS(フロリダ州)2Y uses an aluminium conductor. The conductor material changes resistance, 重さ, size selection, termination design and short-circuit performance.
What is the difference between 2XS(フロリダ州)2Y and 2XS(F)2Y?
2XS(F)2Y is associated with longitudinal water blocking. 2XS(フロリダ州)2Y adds the laminated radial barrier concept, so the two designations should not be treated as interchangeable in wet underground routes.
Where is 2XS(フロリダ州)2Y Cable used?
2XS(フロリダ州)2Y is used in underground high-voltage feeders, utility grids, 変電所, renewable-energy grid connections, industrial incoming supplies and ducted transmission routes where water-blocked PE-sheathed HV cable is specified.
What standards are used for 2XS(フロリダ州)2とケーブル?
IEC 60840 is the common reference for extruded-insulation power cables above 30 kV and up to 150 kV. IEC 60228 is commonly used for conductor class reference. Standard mention does not mean third-party certification or grid approval.
Can 2XS(フロリダ州)2Y Cable be supplied with MDPE or HDPE sheath?
HDPE and MDPE sheath directions are both used in project specifications. The sheath choice depends on route conditions, mechanical exposure, installation handling and the approved datasheet.
What information is needed for a 2XS(フロリダ州)2Y Cable quotation?
XWA confirms 2XS(フロリダ州)2Y Cable based on voltage class, 導体サイズ, screen section, シース材質, ルート状況, 標準, 量, ドラムの長さ, destination country and required test documents.
