When planning a power distribution network, one of the most critical decisions is selecting the appropriate voltage level for your cables. The choice between الجهد المتوسط (إم في) cables و high voltage (الجهد العالي) cables affects not only the efficiency and reliability of your system but also safety, يكلف, and long-term maintenance. Whether you’re an engineer, project manager, or stakeholder in the energy sector, understanding the differences between MV and HV power cables is essential for optimizing your electrical infrastructure.
In this article, we’ll explore the technical distinctions, typical applications, and key selection criteria for MV and HV cables. By the end, you’ll have a clear framework to choose the right voltage for power distribution in your specific scenario.

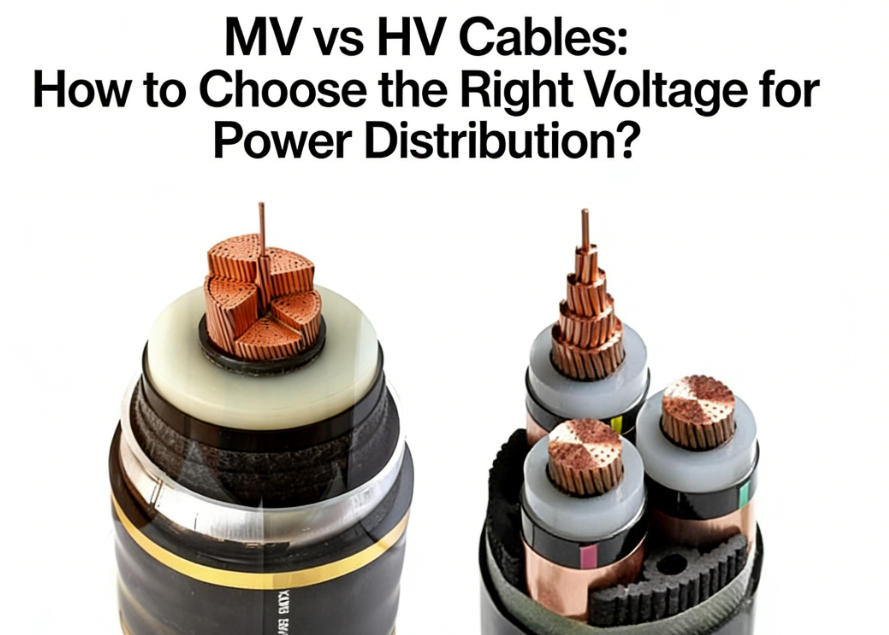

What Are MV and HV Cables?
الجهد المتوسط (إم في) Cables
Medium voltage cables typically operate within the range of 1 kV to 35 كيلو فولت. They are commonly used in:
- Regional power distribution to residential and commercial areas.
- Industrial plants for machinery and internal grid connections.
- مشاريع الطاقة المتجددة, such as connecting wind turbines or solar farms to substations.
MV cables are designed with robust insulation—often using cross-linked polyethylene (XLPE)—to handle moderate electrical stress. They are easier to install and maintain compared to HV cables and are suitable for shorter to medium-distance distribution.
High Voltage (الجهد العالي) Cables
High voltage cables operate at levels above 35 كيلو فولت, usually ranging from 36 kV to 230 kV or higher. These cables are used for:
- Long-distance transmission of electricity from power plants to substations.
- Interconnecting regional grids and enhancing network stability.
- Supplying large industrial complexes or metropolitan areas with high power demands.
HV cables require advanced insulation materials, such as XLPE or ethylene propylene rubber (إي بي آر), and often include additional shielding to manage high electrical fields. Their installation is more complex and governed by stringent safety protocols.
Key Differences Between MV and HV Cables
| Feature | الجهد المتوسط (إم في) Cables | High Voltage (الجهد العالي) Cables |
|---|---|---|
| Voltage Range | 1 kV – 35 كيلو فولت | 36 kV – 230 kV+ |
| Primary Application | Local distribution, industrial power | Long-distance transmission |
| Insulation Requirements | Moderate; XLPE common | High-grade; XLPE/EPR with shielding |
| Installation Complexity | Lower | Higher (requires specialized teams) |
| Cost Considerations | Generally lower upfront cost | Higher initial investment |
| Safety Protocols | Standard electrical safety | Enhanced (arc flash, field management) |
How to Choose: MV or HV for Power Distribution?
Selecting between MV and HV cables depends on several factors:
1. Distance and Power Requirements
- Use MV cables for distances up to a few tens of kilometers and power loads typical of urban or industrial distribution.
- Opt for HV cables when transmitting power over long distances (على سبيل المثال, >50 km) or when very high power capacity is needed, as HV reduces transmission losses significantly.
2. Project Scale and Infrastructure
- For local networks, such as supplying a factory or a residential subdivision, MV power distribution is usually sufficient and more economical.
- For grid interconnections, renewable energy integration, or national transmission projects, HV power cables are necessary to maintain voltage stability and efficiency.
3. Safety and Environmental Factors
- HV systems involve higher risks, such as corona discharge and stronger electromagnetic fields. They require more extensive safety measures and compliance with strict regulations.
- MV installations are relatively simpler but still demand proper grounding and protection systems.
4. Total Cost of Ownership
- While HV cables have higher upfront costs (due to materials, تثبيت, and safety systems), they offer lower energy losses over long distances, which can lead to cost savings in large-scale operations.
- MV systems typically involve lower initial investments and are cheaper to maintain, making them ideal for localized distribution.
5. Future-Proofing and Scalability
- Consider future load increases or grid expansions. HV systems offer greater capacity for scaling, whereas MV networks might require upgrades if demand grows substantially.
Best Practices in Cable Selection
- Conduct a Load Analysis – Calculate present and future power requirements.
- Evaluate Route Conditions – Assess terrain, environmental exposure, and installation feasibility.
- Consult Standards – Follow IEC, IEEE, or local regulations for MV and HV cable specifications.
- Partner with Experts – Work with cable manufacturers and engineers who specialize in power distribution systems.
Conclusion
Choosing between MV and HV cables is a strategic decision that impacts the efficiency, أمان, and cost-effectiveness of your power distribution network. By assessing factors such as distance, power load, budget, and safety, you can determine whether كابلات الجهد المتوسط أو كابلات الجهد العالي are the right fit for your project.
At هوا باور, we provide tailored solutions for both MV and HV applications, ensuring reliable performance and compliance with international standards. Contact our team for expert guidance on selecting and installing the optimal cables for your power distribution needs.
FAQ: MV vs HV Cables for Power Distribution
Q1: What is the main functional difference between MV and HV cables? A1: MV cables are designed for local or regional power distribution (ما يصل الى 35 كيلو فولت), while HV cables are used for long-distance, high-capacity transmission (above 35 كيلو فولت) with lower energy losses.
Q2: Can MV cables be used for long-distance power transmission? A2: Generally, no. MV cables have higher resistive losses over long distances, making them inefficient for transmission beyond a few tens of kilometers. HV cables are preferred for long-range applications.
Q3: Are HV cables more expensive than MV cables? A3: نعم, HV cables typically involve higher costs due to advanced insulation, shielding, and more complex installation and safety requirements. However, they can be more economical for long-distance transmission due to reduced energy losses.
Q4: What safety measures are specific to HV cable installations? A4: HV installations require strict protocols: corona discharge mitigation, enhanced grounding, electromagnetic field management, arc flash protection, and specialized training for personnel.
Q5: How do I decide between MV and HV for an industrial plant? A5: Consider the plant’s power demand, distance from the main grid, and future expansion plans. Most industrial facilities use MV distribution internally, but if the plant is large or remotely located, an HV connection might be necessary.
